TDA7418 - 3 band car audio processor

STMicroelectronics

📥 Download Datasheet

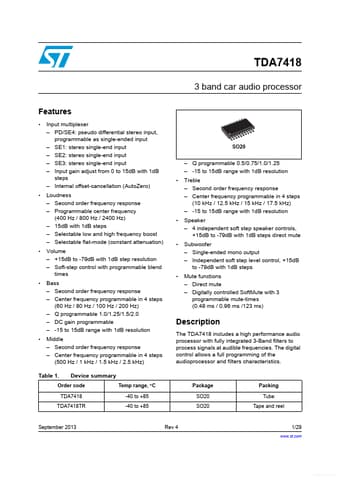

TDA7418 Datasheet Preview — Preview of TDA7418 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TDA7418
Manufacturer	STMicroelectronics ↗
File Size	437.16 KB
Description	3 band car audio processor
Datasheet	TDA7418-STMicroelectronics.pdf

TDA7418 Product details

Description

The TDA7418 includes a high performance audio processor with fully integrated 3-Band filters to process signals at audible frequencies. Table 1. .

Features

Input multiplexer.
PD/SE4: pseudo differential stereo input, programmable as single-ended input.
SE1: stereo single-end input.
SE2: stereo single-end input.
SE3: stereo single-end input.
Input gain adjust from 0 to 15dB with 1dB steps.
Internal offset-cancellation (AutoZero) Loudness.
Second order frequency response.
Programmable center frequency (400 Hz / 800 Hz / 2400 Hz).
15dB with 1dB steps.
S.
