TDA7416 CARRADIO SIGNAL PROCESSOR

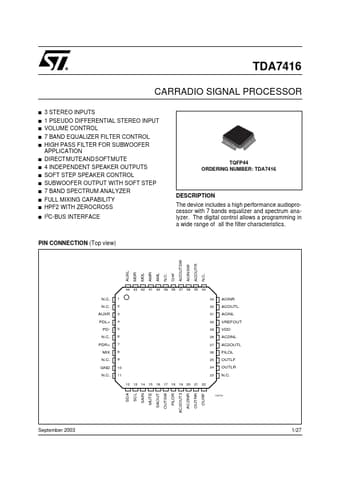

The device includes a high performance audioprocessor with 7 bands equalizer and spectrum analyzer. The digital control allows a programming in a wide range of all the filter characteristics. PIN CONNECTION (Top view) ACOUTSW ACOUTR 35 ACINSW AUXL MDR AMR MDL AML N.C. 44 43 42 41 40 3.

TDA7416 Features

* Input multiplexer

* 1 pseudo differential CDC stereo input, programmable as single-ended input 3 single-ended stereo inputs Input gain adjust 0 to 15dB with 1dB steps direct mute internal offset-cancellation (autozero) Mixing stage

* mixable m
