TDA7434

BASIC FUNCTION AUDIO PROCESSOR

ST Microelectronics

TDA7434 Features

* 18dB

TDA7434 General Description

The TDA7434 is a volume, tone (bass and treble) balance (Left / Right) fader (Front / Rear) processor for quality audio applications in car radio and Hi-Fi systems. Control is accomplished by serial bus microprocessor interface. BLOCK DIAGRAM 4.7K 100nF LOUD_L 7 6 2 MUX VOL BASS TREBLE BIN_L 12 100n.

TDA7434 Datasheet (88.68 KB)

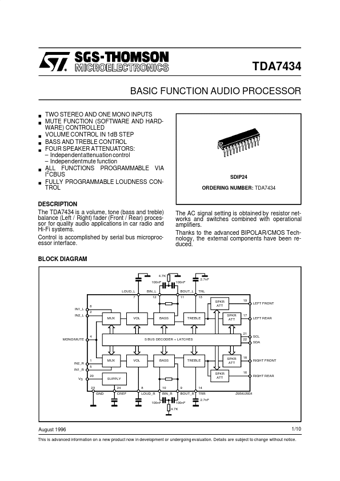

TDA7434 Datasheet Preview — Preview of TDA7434 PDF

Datasheet Details

Part number:

TDA7434

Manufacturer:

STMicroelectronics ↗

File Size:

88.68 KB

Description:

Basic function audio processor.
TDA7434 BASIC FUNCTION AUDIO PROCESSOR TWO STEREO AND ONE MONO INPUTS MUTE FUNCTION (SOFTWARE AND HARDWARE) CONTROLLED VOLUME CONTROL IN 1dB STEP BASS.
