TDA9530 9.5NS TRIPLE HIGH VOLTAGE VIDEO AMPLIFIER

The TDA9530 is a triple video amplifier with high voltage Bipolar/CMOS/DMOS technology (BCD). It can drive the 3 cathodes of a monitor CRT in DC or AC coupling mode. A DC coupling application is obtained by connecting a triple DC controlled circuit either on the input pin or on the cut-off pin. MULT.

TDA9530_STMicroelectronics.pdf

Preview of TDA9530 PDF

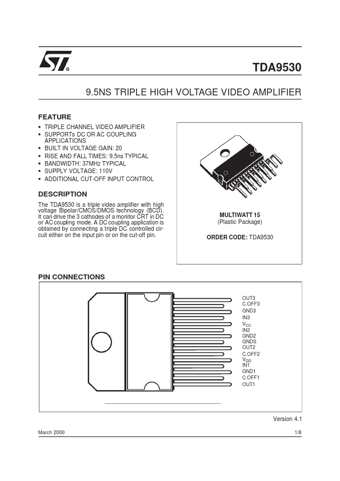

TDA9530 Datasheet Preview Page 2 TDA9530 Datasheet Preview Page 3

Datasheet Details

Part number:

TDA9530

Manufacturer:

STMicroelectronics ↗

File Size:

145.26 KB

Description:

9.5ns triple high voltage video amplifier.
