TDA9533 Datasheet, Amplifier, ST Microelectronics

PDF File Details

Part number:

TDA9533

Manufacturer:

STMicroelectronics ↗

File Size:

183.39kb

Download:

📄 Datasheet

Description:

7.5ns triple high voltage video amplifier. The TDA9533 is a triple video amplifier with high voltage Bipolar/CMOS/DMOS technology (BCD). It can drive the 3 cathodes of a monito

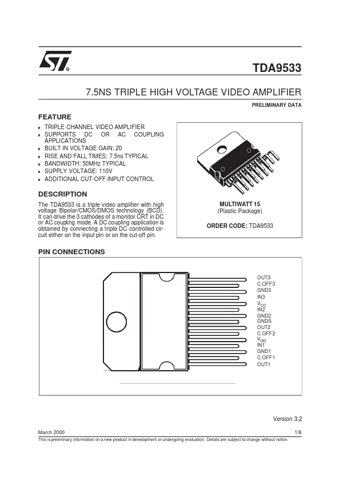

Datasheet Preview: TDA9533 📥 Download PDF (183.39kb)
Page 2 of TDA9533 Page 3 of TDA9533

TDA9533 Application

  • Applications BUILT IN VOLTAGE GAIN: 20 RISE AND FALL TIMES: 7.5ns TYPICAL BANDWIDTH: 50MHz TYPICAL SUPPLY VOLTAGE: 110V ADDITIONAL CUT-OFF INPUT CON
