TEA7063 - SPEECH CIRCUIT WITH POWER MANAGEMENT

Datasheet Summary

Description

worldwide specifications for telephone set in medium and high range equipments.

Features

ramm.

ST Microelectronics

📥 Download Datasheet

Datasheet Details

Part number	TEA7063
Manufacturer	STMicroelectronics
File Size	228.27 KB
Description	SPEECH CIRCUIT WITH POWER MANAGEMENT
Datasheet	TEA7063 Datasheet
Additional preview pages of the TEA7063 datasheet.

📁 Similar Datasheet

TEA7034 - Low Drop Out 5V Voltage Regulator (SGS-Thomson)
TEA7605 - LOW-DROP VOLTAGE REGULATOR (STMicroelectronics)
TEA7650H - Video signal processor for CD-video/laser vision (NXP)
TEA-566A - POWER MOSFET (NEC)
TEA0652 - (TEA0652 / TEA0654) MONOLITHISCHE STEREO IS (ETC)
TEA0654 - (TEA0652 / TEA0654) MONOLITHISCHE STEREO IS (ETC)
TEA0665 - Dolby B and C Type Noise Reduction Circuit (Philips)
TEA0665T - Dolby B and C Type Noise Reduction Circuit (Philips)
TEA0675 - Dual Dolby* B-type noise reduction circuit for playback applications (NXP)
TEA0675T - Dual Dolby* B-type noise reduction circuit for playback applications (NXP)

Other Datasheets by ST Microelectronics

TEA7037 - Speech and Tone Circuit
TEA7088A - LOW-RANGE PHONE DEDICATED CHIP
TEA7089A - LOW-RANGE PHONE DEDICATED CHIP
TEA7091 - TELEPHONE ANALOG FRONT END
TEA7092 - TELEPHONE SET INTEGRATED CIRCUIT
TEA7530 - MONITOR AMPLIFIER
TEA7532 - MONITOR AMPLIFIER
TEA7540 - HANDSFREE CONTROLLER

Full PDF Text Transcription

Click to expand full text

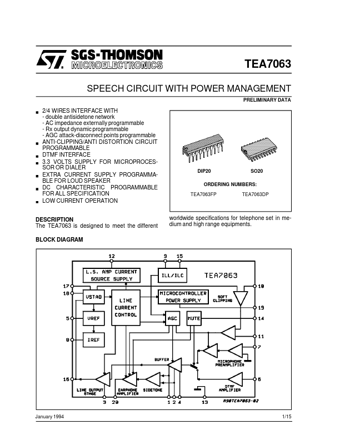

TEA7063 SPEECH CIRCUIT WITH POWER MANAGEMENT PRELIMINARY DATA 2/4 WIRES INTERFACE WITH - double antisidetone network - AC impedance externally programmable - Rx output dynamic programmable - AGC attack-disconnect points programmable ANTI-CLIPPING/ANTI DISTORTION CIRCUIT PROGRAMMABLE DTMF INTERFACE 3.3 VOLTS SUPPLY FOR MICROPROCESSOR OR DIALER EXTRA CURRENT SUPPLY PROGRAMMABLE FOR LOUD SPEAKER DC CHARACTERISTIC PROGRAMMABLE FOR ALL SPECIFICATION LOW CURRENT OPERATION DESCRIPTION The TEA7063 is designed to meet the different BLOCK DIAGRAM DIP20 SO20 ORDERING NUMBERS: TEA7063FP TEA7063DP worldwide specifications for telephone set in medium and high range equipments. January 1994 1/15 This is advanced information on a new product now in development or undergoing evaluation.
