TEA7091 - TELEPHONE ANALOG FRONT END

Datasheet Summary

Description

The TEA7091 is a Telephone set Analog Front End (TAFE) interface intended for use in conjunction with a microcontroller.

In this configuration the TEA7091 provides a worldwide mid-range telephone set with loudhearing on board and melody ringer on loudspeaker.

Features

  • SPEECH DC LINE.

📥 Download Datasheet

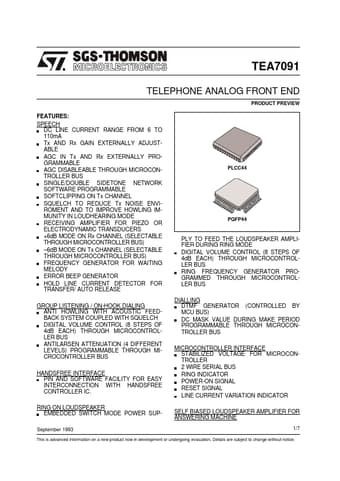

Datasheet preview – TEA7091

Datasheet Details

Part number TEA7091
Manufacturer STMicroelectronics
File Size 139.55 KB
Description TELEPHONE ANALOG FRONT END
Datasheet download datasheet TEA7091 Datasheet
Additional preview pages of the TEA7091 datasheet.

📁 Similar Datasheet

  • TEA7034 - Low Drop Out 5V Voltage Regulator (SGS-Thomson)
  • TEA7605 - LOW-DROP VOLTAGE REGULATOR (STMicroelectronics)
  • TEA7650H - Video signal processor for CD-video/laser vision (NXP)
  • TEA-566A - POWER MOSFET (NEC)
  • TEA0652 - (TEA0652 / TEA0654) MONOLITHISCHE STEREO IS (ETC)
  • TEA0654 - (TEA0652 / TEA0654) MONOLITHISCHE STEREO IS (ETC)
  • TEA0665 - Dolby B and C Type Noise Reduction Circuit (Philips)
  • TEA0665T - Dolby B and C Type Noise Reduction Circuit (Philips)
  • TEA0675 - Dual Dolby* B-type noise reduction circuit for playback applications (NXP)
  • TEA0675T - Dual Dolby* B-type noise reduction circuit for playback applications (NXP)
Other Datasheets by ST Microelectronics
  • TEA7092 - TELEPHONE SET INTEGRATED CIRCUIT
  • TEA7037 - Speech and Tone Circuit
  • TEA7063 - SPEECH CIRCUIT WITH POWER MANAGEMENT
  • TEA7088A - LOW-RANGE PHONE DEDICATED CHIP
  • TEA7089A - LOW-RANGE PHONE DEDICATED CHIP
  • TEA7530 - MONITOR AMPLIFIER
  • TEA7532 - MONITOR AMPLIFIER
  • TEA7540 - HANDSFREE CONTROLLER

Full PDF Text Transcription

Click to expand full text
TEA7091 TELEPHONE ANALOG FRONT END PRODUCT PREVIEW FEATURES: SPEECH DC LINE CURRENT RANGE FROM 6 TO 110mA Tx AND Rx GAIN EXTERNALLY ADJUSTABLE AGC IN Tx AND Rx EXTERNALLY PROGRAMMABLE AGC DISABLEABLE THROUGH MICROCONTROLLER BUS SINGLE/DOUBLE SIDETONE NETWORK SOFTWARE PROGRAMMABLE SOFTCLIPPING ON Tx CHANNEL SQUELCH TO REDUCE Tx NOISE ENVIROMENT AND TO IMPROVE HOWLING IMMUNITY IN LOUDHEARING MODE RECEIVING AMPLIFIER FOR PIEZO OR ELECTRODYNAMIC TRANSDUCERS +6dB MODE ON Rx CHANNEL (SELECTABLE THROUGH MICROCONTROLLER BUS) –6dB MODE ON Tx CHANNEL (SELECTABLE THROUGH MICROCONTROLLER BUS) FREQUENCY GENERATOR FOR WAITING MELODY ERROR BEEP GENERATOR HOLD LINE CURRENT DETECTOR FOR TRANSFER/ AUTO RELEASE GROUP LISTENING / ON-HOOK DIALING ANTI HOWLING WITH ACOUSTIC FEEDBACK SYSTEM COUPLED WITH SQUELCH
