TSV911 - 8MHz operational amplifiers

ST Microelectronics

The TSV911 by ST Microelectronics is a 8MHz operational amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

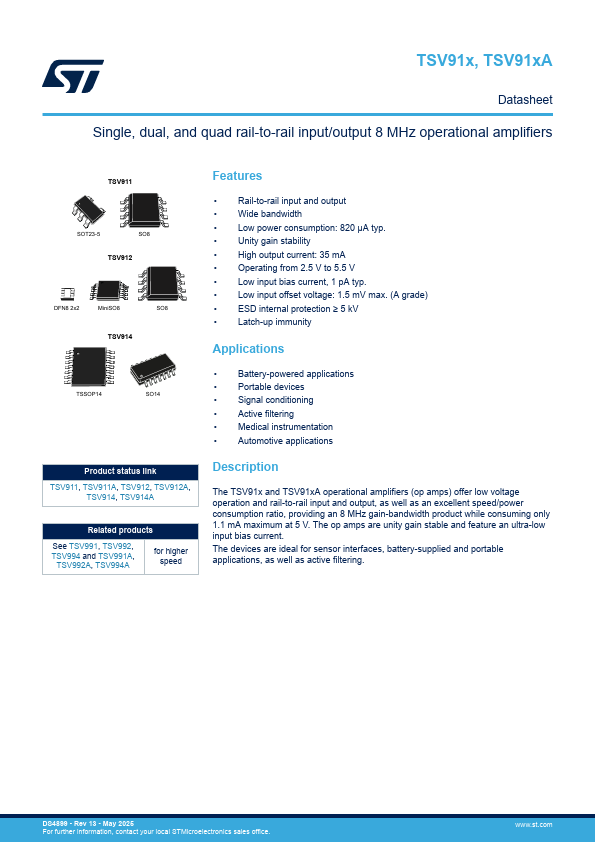

TSV911 8MHz operational amplifiers by ST Microelectronics - Datasheet Preview — Official preview page of the **TSV911** 8MHz operational amplifiers datasheet (ST Microelectronics).

Datasheet Details

Part number	TSV911
Manufacturer	STMicroelectronics
File Size	960.65 KB
Description	8MHz operational amplifiers
Datasheet	TSV911_STMicroelectronics.pdf

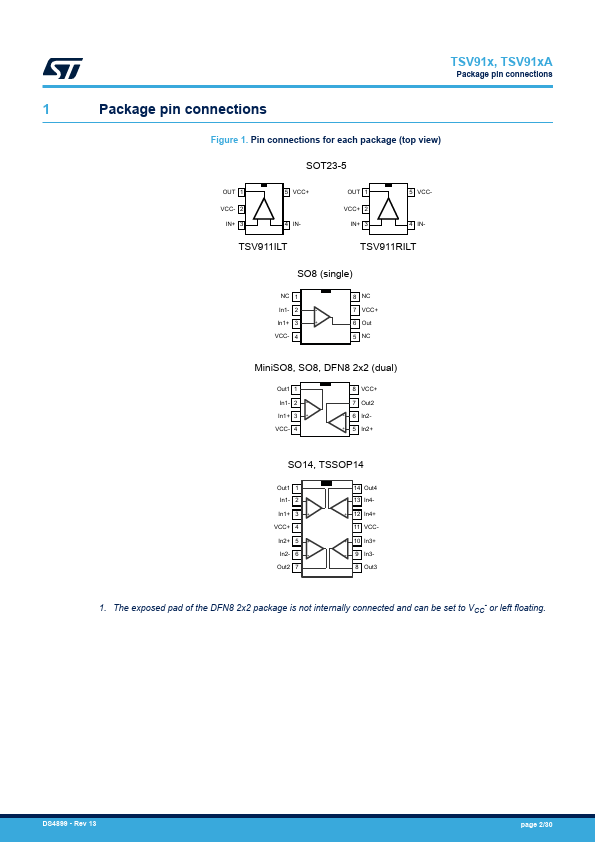

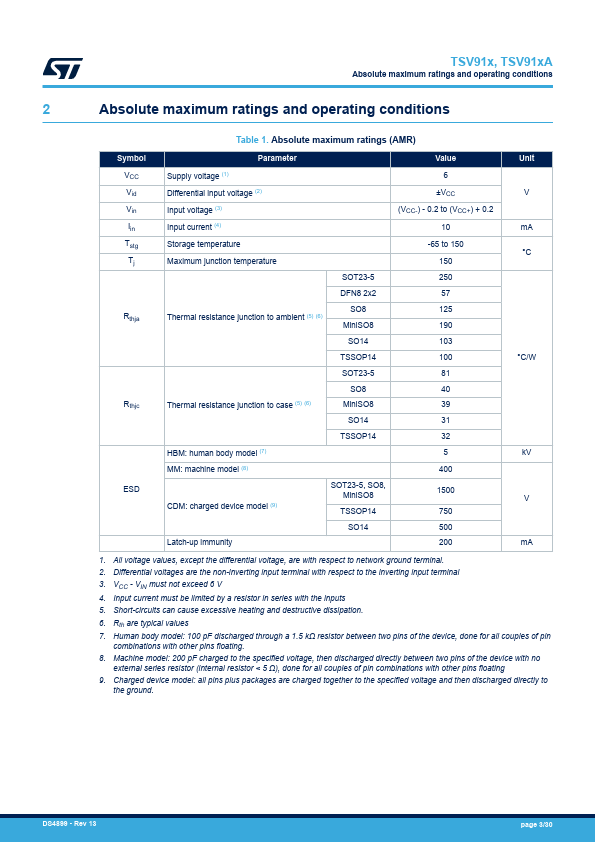

Additional preview pages of the TSV911 datasheet.

TSV911 Product details

Description

The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V.

Features

Rail-to-rail input and output.
Wide bandwidth.
Low power consumption: 820 µA typ.
Unity gain stability.
High output current: 35 mA.
Operating from 2.5 V to 5.5 V.
Low input bias current, 1 pA typ.
Low input offset voltage: 1.5 mV max. (A grade).
ESD internal protection ≥ 5 kV.
Latch-up immunity.
