VNQ830A-E - QUAD CHANNEL HIGH SIDE DRIVER

VNQ830A-E Description

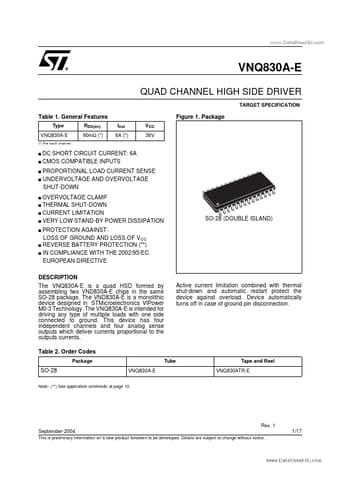

www.DataSheet4U.com VNQ830A-E QUAD CHANNEL HIGH SIDE DRIVER TARGET SPECIFICATION Table 1.General .
The VNQ830A-E is a quad HSD formed by assembling two VND830A-E chips in the same SO-28 package.

VNQ830A-E Features

* Type VNQ830A-E (
* ) Per each channel s s s Figure 1. Package Iout 6A (
* ) RDS(on) 60mΩ (
* ) VCC 36V DC SHORT CIRCUIT CURRENT: 6A CMOS COMPATIBLE INPUTS PROPORTIONAL LOAD CURRENT SENSE s UNDERVOLTAGE AND OVERVOLTAGE SHUT-DOWN OVERVOLTAGE CLAMP THERMAL SHUT-DOWN s CURRENT LIMITATION s VE
