VNQ830P-E - QUAD CHANNEL HIGH SIDE DRIVER

VNQ830P-E Description

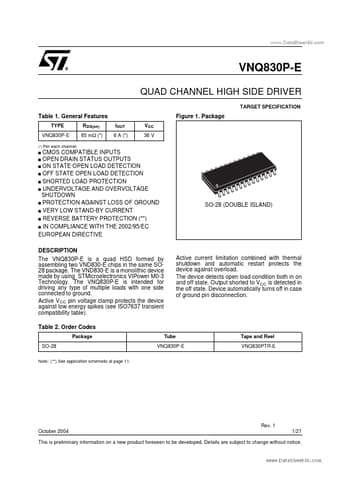

www.DataSheet4U.com VNQ830P-E QUAD CHANNEL HIGH SIDE DRIVER TARGET SPECIFICATION Table 1.General .
The VNQ830P-E is a quad HSD formed by assembling two VND830-E chips in the same SO28 package.

VNQ830P-E Features

* TYPE VNQ830P-E (
* ) Per each channel Figure 1. Package IOUT 6 A (
* ) VCC 36 V RDS(on) 65 mΩ (
* ) CMOS COMPATIBLE INPUTS OPEN DRAIN STATUS OUTPUTS s ON STATE OPEN LOAD DETECTION s OFF STATE OPEN LOAD DETECTION s SHORTED LOAD PROTECTION s UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN s PROTECTION
