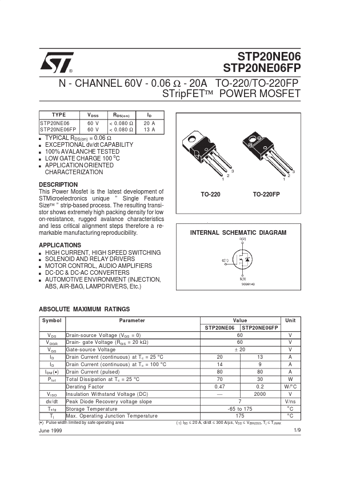

STP20NE06 Datasheet, Mosfet, ST

PDF File Details

Part number:

STP20NE06

Manufacturer:

ST

File Size:

104.96kb

Download:

📄 Datasheet

Description:

N-channel 60v - 0.06 ohm - 20a to-220/to-220fp stripfet power mosfet. This Power Mosfet is the latest development of STMicroelectronics unique ” Single Feature Size™ ” strip-based process. The resulting

STP20NE06 Application

• Applications s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s AUTOMO
