MAA3373K - Single Color Semi-Round Shape Type

Datasheet Summary

Features

  • Package www. DataSheet4U. com Single Color Semi-Round Shape Type 2×3 Semi-Round shape type, MBG,MPG : Pale Green Diffused epoxy MPY,MAY : Pale Yellow Diffused epoxy MAA : Pale Orange Diffused epoxy MVR,BR,MPR : Pale Red Diffused epoxy Outer Dimension 2×3 Semi-Round shape type Operation temperature range. Storage Temperature :-30℃～100℃ Operating Temperature :-30℃～85℃ Lead.
  • free soldering compatible RoHS compliant Green Yellow Green Yellow Orange Red : 558nm (MBG) 567nm (MPG) : 572nm (MPY).

📥 Download Datasheet

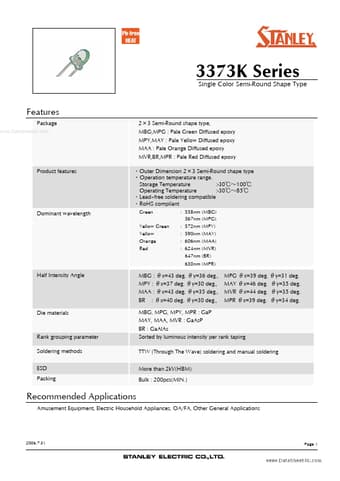

Datasheet preview – MAA3373K

Datasheet Details

Part number MAA3373K
Manufacturer STANLEY ELECTRIC
File Size 464.65 KB
Description Single Color Semi-Round Shape Type
Datasheet download datasheet MAA3373K Datasheet
Additional preview pages of the MAA3373K datasheet.

📁 Similar Datasheet

Other Datasheets by STANLEY ELECTRIC
  • MAA3363K - Single Color Semi-Round Shape Type
  • MAA3864K - Single Color Flush Mount Round Shape Type
  • MAA3874K - Single Color Flush Mount Round Shape Type
  • MAA2262S - Single Color LED
  • MAA4361F - Single Color 3.6 Right Angle Type
  • MAA4364K - Single Color Rectangular Shape Type
  • MAA4365S - Single Color 4 Round Shape Type
  • MAA4565S - (MAA4565S / MAA4575S) Super Bright LED Lamp

Full PDF Text Transcription

Click to expand full text
3373K Series Features Package www.DataSheet4U.com Single Color Semi-Round Shape Type 2×3 Semi-Round shape type, MBG,MPG : Pale Green Diffused epoxy MPY,MAY : Pale Yellow Diffused epoxy MAA : Pale Orange Diffused epoxy MVR,BR,MPR : Pale Red Diffused epoxy Outer Dimension 2×3 Semi-Round shape type Operation temperature range. Storage Temperature :-30℃～100℃ Operating Temperature :-30℃～85℃ Lead–free soldering compatible RoHS compliant Green Yellow Green Yellow Orange Red : 558nm (MBG) 567nm (MPG) : 572nm (MPY) : 590nm (MAY) : 606nm (MAA) : 624nm (MVR) 647nm (BR) 630nm (MPR) Product features Dominant wavelength Half Intensity Angle MBG : θx=43 deg. θy=36 deg., MPY : θx=37 deg. θy=30 deg., MAA : θx=43 deg. θy=35 deg., BR : θx=40 deg. θy=30 deg., MPG θx=39 deg. θy=31 deg. MAY θx=46 deg.
