MAA3864K - Single Color Flush Mount Round Shape Type

Datasheet Summary

Features

  • Package www. DataSheet4U. com Single Color Flush Mount Round Shape Type φ3 Flush Mount Round shape type, MBG,MPG : Pale Green Clear epoxy MPY,MAY : Pale Yellow Clear epoxy MAA : Pale Orange Clear epoxy MVR,BR,MPR : Pale Red Clear epoxy Outer Dimension φ3 Flush Mount Round shape type Operation temperature range. Storage Temperature :-30℃～100℃ Operating Temperature :-30℃～85℃ Lead.
  • free soldering compatible RoHS compliant Green Yellow Green Yellow Orange Red : : : : : : 558nm (MBG) 567nm (MP.

📥 Download Datasheet

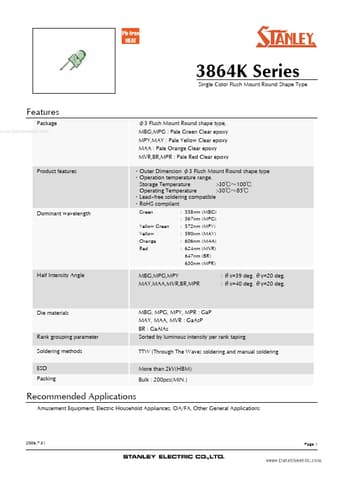

Datasheet preview – MAA3864K

Datasheet Details

Part number MAA3864K
Manufacturer STANLEY ELECTRIC
File Size 471.00 KB
Description Single Color Flush Mount Round Shape Type
Datasheet download datasheet MAA3864K Datasheet
Additional preview pages of the MAA3864K datasheet.

📁 Similar Datasheet

Other Datasheets by STANLEY ELECTRIC
  • MAA3874K - Single Color Flush Mount Round Shape Type
  • MAA3363K - Single Color Semi-Round Shape Type
  • MAA3373K - Single Color Semi-Round Shape Type
  • MAA2262S - Single Color LED
  • MAA4361F - Single Color 3.6 Right Angle Type
  • MAA4364K - Single Color Rectangular Shape Type
  • MAA4365S - Single Color 4 Round Shape Type
  • MAA4565S - (MAA4565S / MAA4575S) Super Bright LED Lamp

Full PDF Text Transcription

Click to expand full text
3864K Series Features Package www.DataSheet4U.com Single Color Flush Mount Round Shape Type φ3 Flush Mount Round shape type, MBG,MPG : Pale Green Clear epoxy MPY,MAY : Pale Yellow Clear epoxy MAA : Pale Orange Clear epoxy MVR,BR,MPR : Pale Red Clear epoxy Outer Dimension φ3 Flush Mount Round shape type Operation temperature range. Storage Temperature :-30℃～100℃ Operating Temperature :-30℃～85℃ Lead–free soldering compatible RoHS compliant Green Yellow Green Yellow Orange Red : : : : : : 558nm (MBG) 567nm (MPG) 572nm (MPY) 590nm (MAY) 606nm (MAA) 624nm (MVR) 647nm (BR) 630nm (MPR) Product features Dominant wavelength Half Intensity Angle MBG,MPG,MPY MAY,MAA,MVR,BR,MPR : θx=39 deg. θy=20 deg. : θx=40 deg. θy=20 deg.
