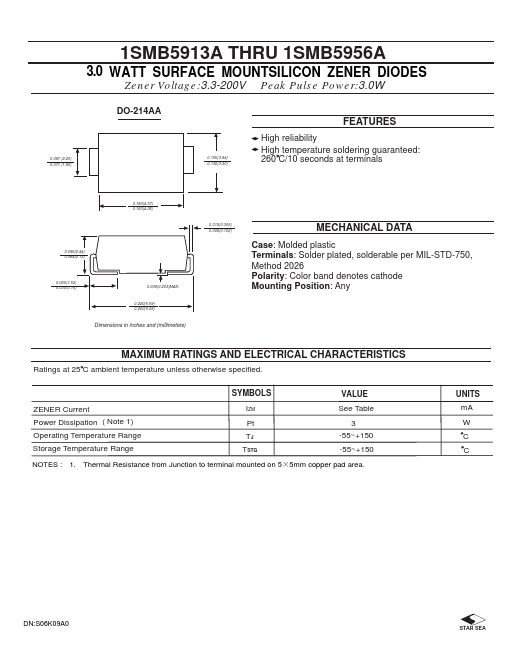

1SMB5955A, 1SMB5913A 3W SURFACE MOUNTSILICON ZENER DIODES

Description

1SMB5913A THRU 1SMB5956A 3 .0 WATT SURFACE MOUNTSILICON ZENER DIODES Zener Voltage:3.3-200V Peak Pulse Power:3.0W 0.087 (2.20) 0.071 (1.80) DO-214AA.

📥 Download Datasheet

1SMB5955A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SMB5955A, 1SMB5913A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1SMB5955A, 1SMB5913A
Manufacturer: STAR SEA
File Size: 647.51 KB
Datasheet: 1SMB5913A-STARSEA.pdf
Description: 3W SURFACE MOUNTSILICON ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: 1SMB5955A, 1SMB5913A.
Please refer to the document for exact specifications by model.

Features

* High reliability High temperature soldering guaranteed: 260 C/10 seconds at terminals 0.180(4.57) 0.160(4.06) 0.096(2.44) 0.084(2.13) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.220(5.59) 0.200(5.08) Dimensions in inches and (millimeters) 0.012(0.305) 0.006(0.152) MECHANICAL DATA Case: Molded p
