SR1200S, SR120S - SCHOTTKY BARRIER RECTIFIER

📥 Download Datasheet

SR1200S Datasheet Preview — This datasheet PDF includes multiple part numbers: SR1200S, SR120S. Please refer to the document for exact specifications by model.

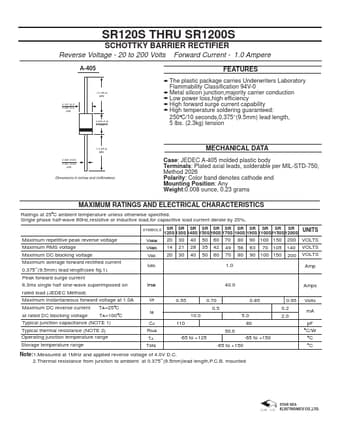

datasheet Preview Page 2

Datasheet Details

Part number: SR1200S, SR120S
Manufacturer: STAR SEA
File Size: 18.55 KB
Datasheet: SR120S-STARSEA.pdf
Description: SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SR1200S, SR120S.
Please refer to the document for exact specifications by model.

SR1200S Product details

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.025 (0.65) 0.021 (0.55) DIA. 1.0 (25.4) MIN. Dimensions in inches and (millimeters).
