SR1200, SR120 Datasheet - UPM

SR1200 1A Schottky Barrier Rectifiers

SR1200 Features

* Low forward voltage drop

* High current capability

* High reliability

* High surge current capability SR120 THRU SR1200 1 A Schottky Barrier Rectifiers Voltage Range 20 to 200 Volts Current 1.0 Ampere DO-41 .107(2.7) .080(2.0) DIA . 1.0(25.4) MIN . Mechanical Data

* Cases

SR120-UPM.pdf

This datasheet PDF includes multiple part numbers: SR1200, SR120. Please refer to the document for exact specifications by model.

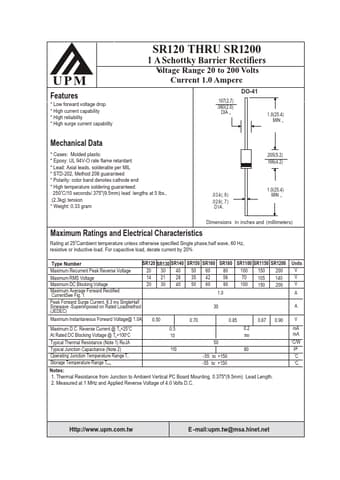

SR1200 Datasheet Preview Page 2

Datasheet Details

Part number:

SR1200, SR120

Manufacturer:

UPM

File Size:

57.65 KB

Description:

1a schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SR1200, SR120.
Please refer to the document for exact specifications by model.
