DG20X06T2 IGBT

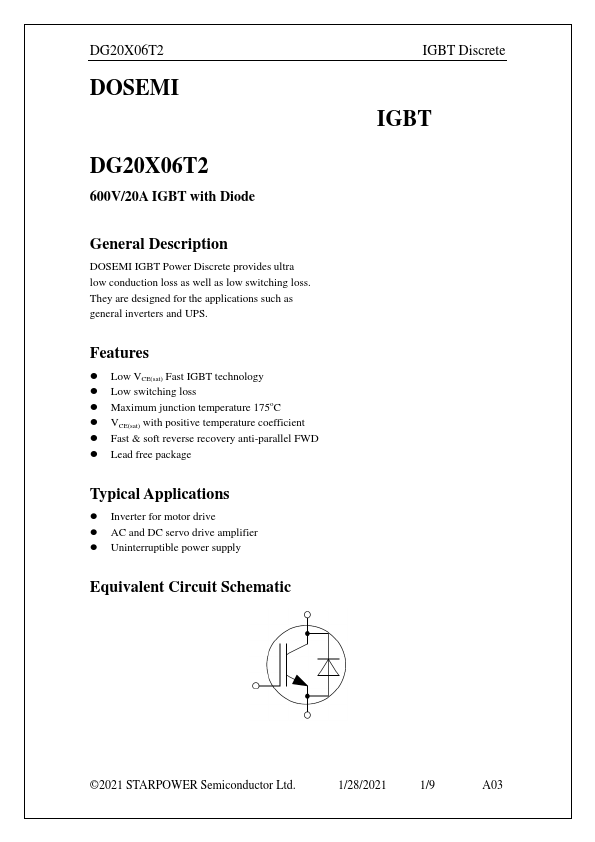

📥 Download Datasheet Datasheet Preview Page 1

Description

DG20X06T2 DOSEMI DG20X06T2 600V/20A IGBT with Diode General .
DOSEMI IGBT Power Discrete provides ultra low conduction loss as well as low switching loss.

📥 Download Datasheet

Preview of DG20X06T2 PDF

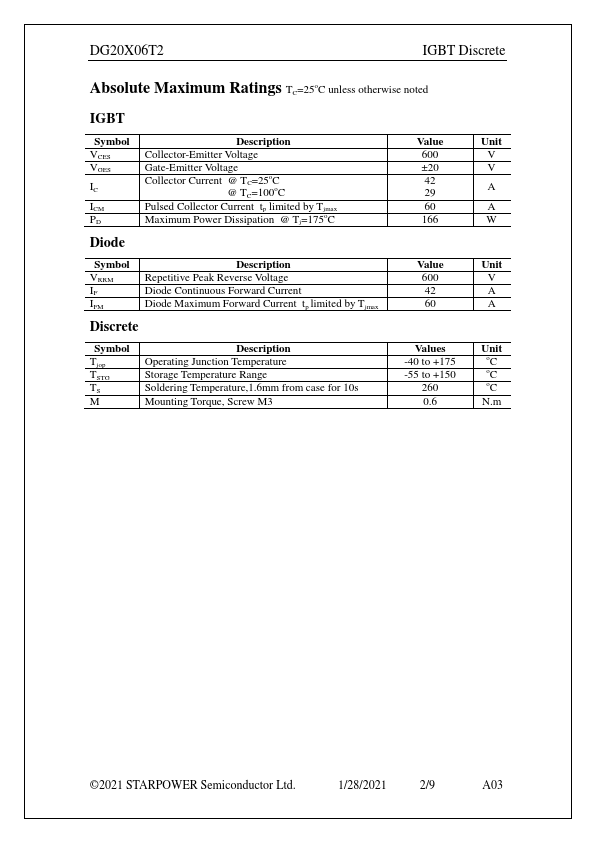

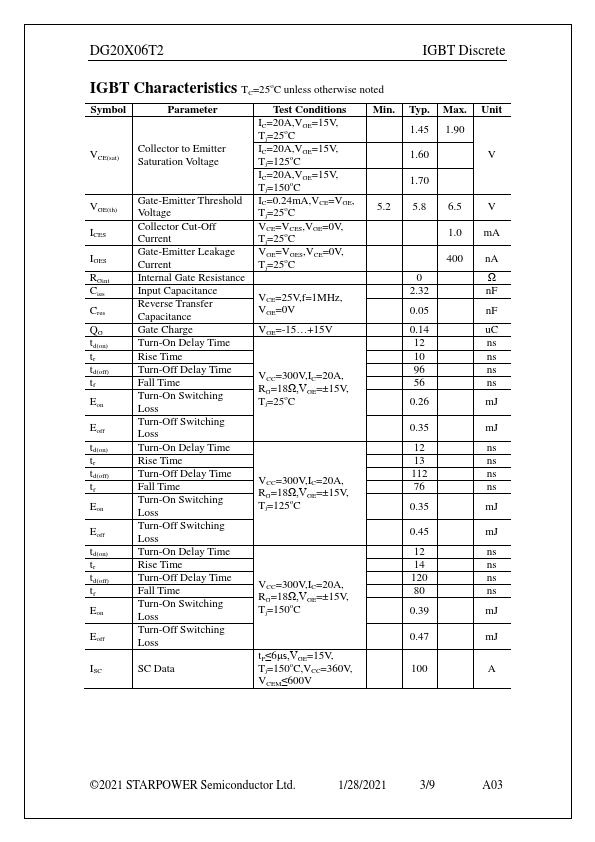

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DG20X06T2
Manufacturer
STARPOWER
File Size
671.27 KB
Datasheet
DG20X06T2-STARPOWER.pdf
Description
IGBT

Features

* Low VCE(sat) Fast IGBT technology
* Low switching loss
* Maximum junction temperature 175oC
* VCE(sat) with positive temperature coefficient
* Fast & soft reverse recovery anti-parallel FWD
