GD1000HFA120C6S - IGBT

STARPOWER

📥 Download Datasheet

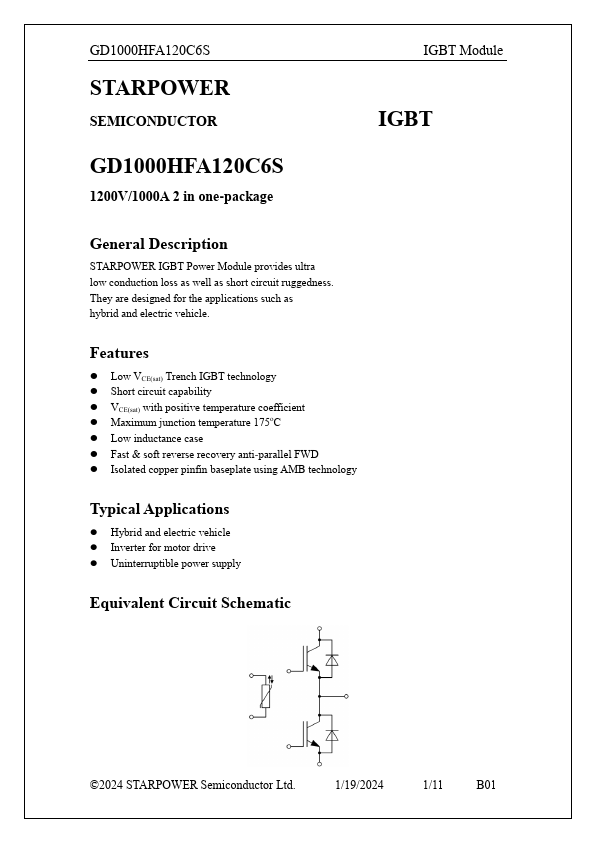

GD1000HFA120C6S Datasheet Preview — Preview of GD1000HFA120C6S PDF

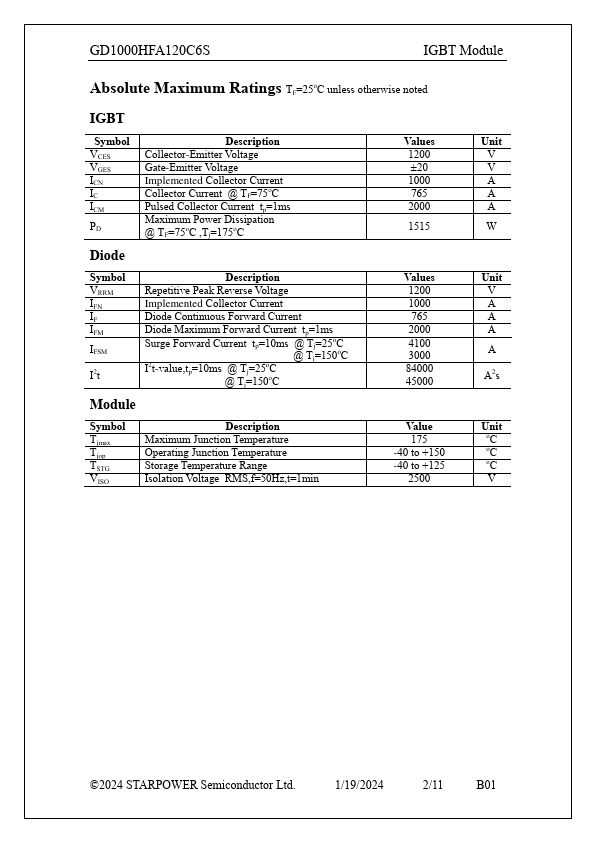

datasheet Preview Page 2

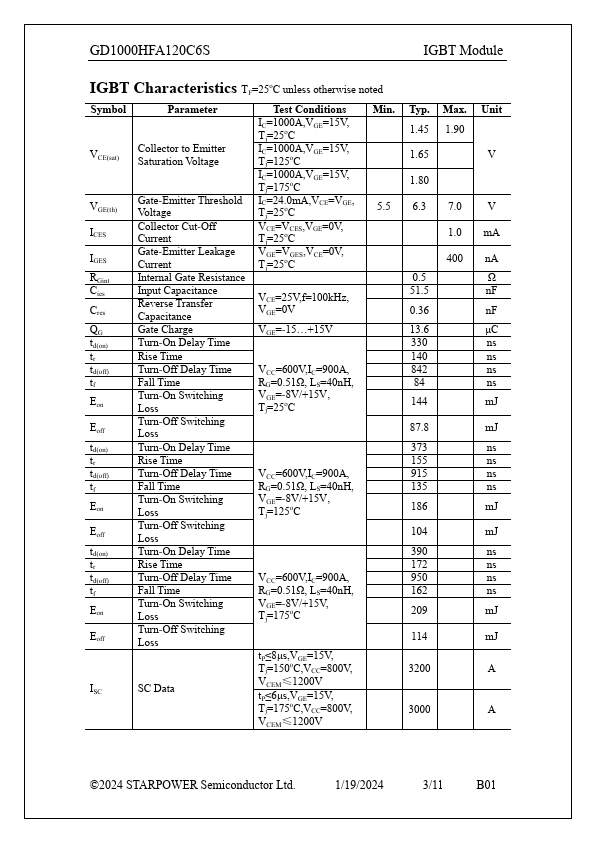

datasheet Preview Page 3

Datasheet Details

Part number: GD1000HFA120C6S
Manufacturer: STARPOWER
File Size: 588.88 KB
Datasheet: GD1000HFA120C6S-STARPOWER.pdf
Description: IGBT

GD1000HFA120C6S Product details

Features

Low VCE(sat) Trench IGBT technology.
Short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper pinfin baseplate using AMB technology Typical.
