GD100HFQ120C1S IGBT

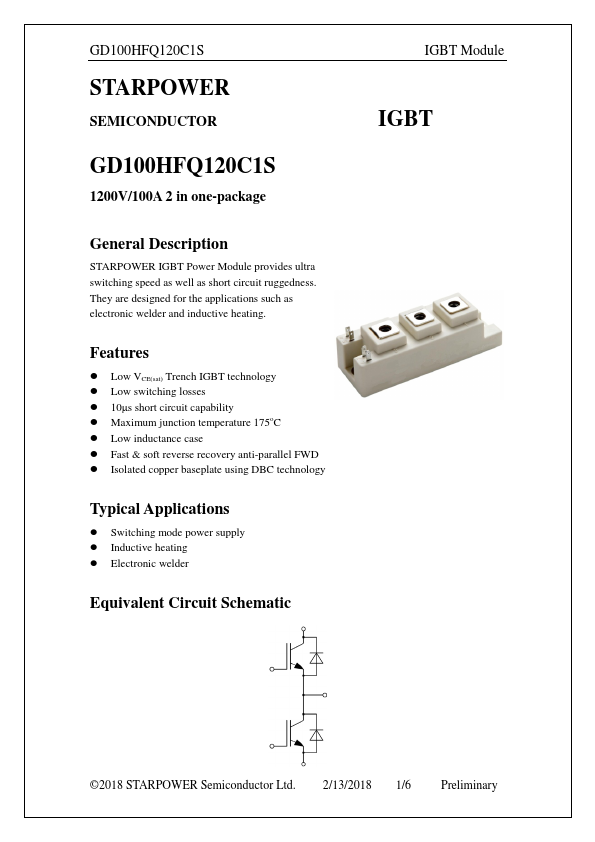

📥 Download Datasheet  Datasheet Preview Page 1

Description

GD100HFQ120C1S STARPOWER SEMICONDUCTOR GD100HFQ120C1S 1200V/100A 2 in one-package General .
STARPOWER IGBT Power Module provides ultra switching speed as well as short circuit ruggedness.

📥 Download Datasheet

Preview of GD100HFQ120C1S PDF

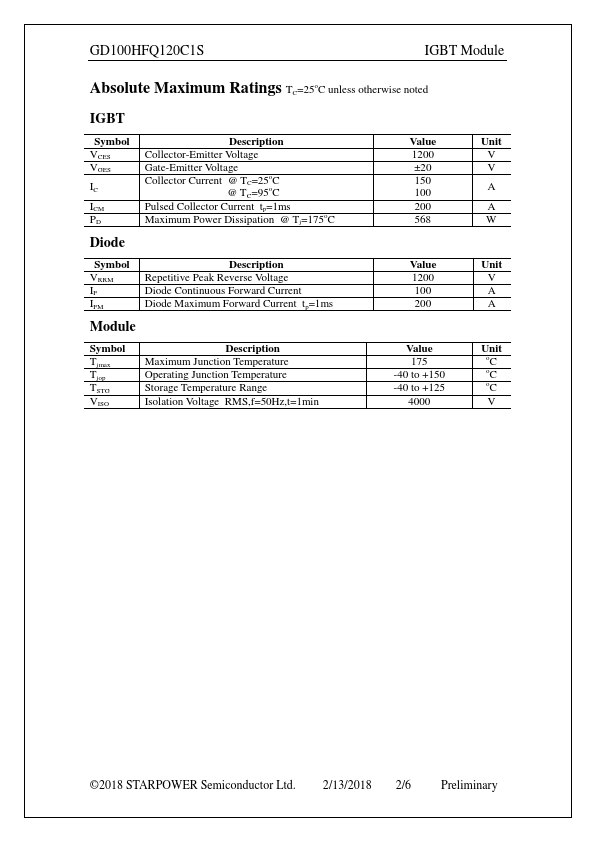

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GD100HFQ120C1S
Manufacturer
STARPOWER
File Size
150.90 KB
Datasheet
GD100HFQ120C1S-STARPOWER.pdf
Description
IGBT

Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 10μs short circuit capability
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
