GD200HFQ120C2SD - IGBT

STARPOWER

📥 Download Datasheet

GD200HFQ120C2SD Datasheet Preview — Preview of GD200HFQ120C2SD PDF

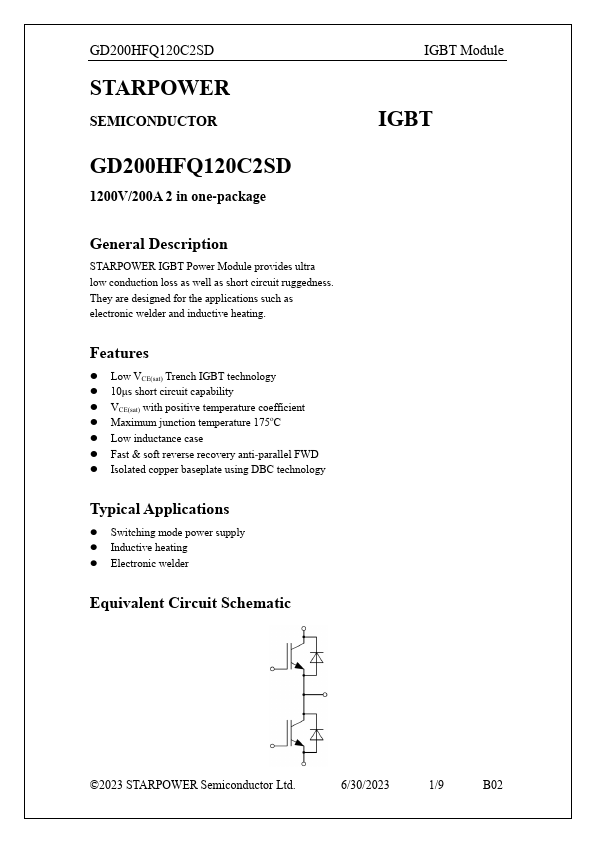

datasheet Preview Page 2

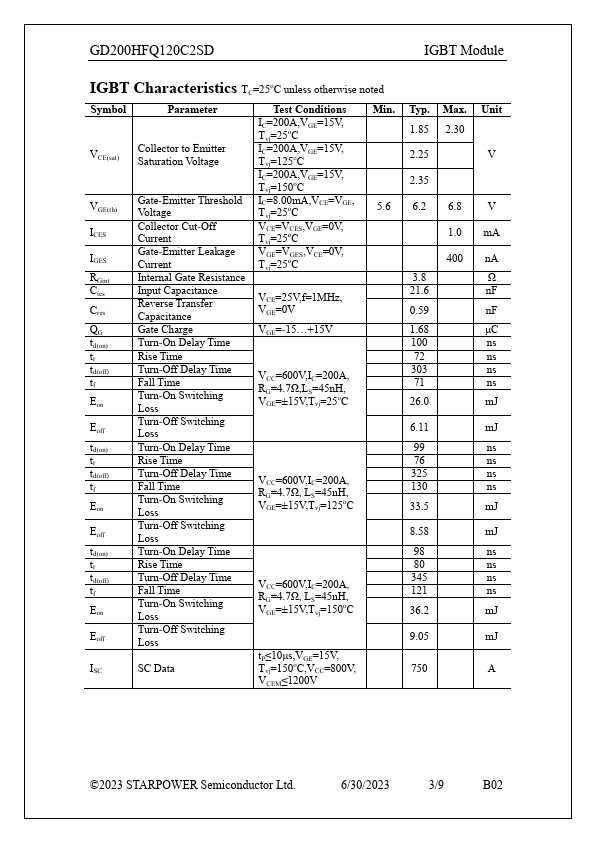

datasheet Preview Page 3

Datasheet Details

Part number: GD200HFQ120C2SD
Manufacturer: STARPOWER
File Size: 370.61 KB
Datasheet: GD200HFQ120C2SD-STARPOWER.pdf
Description: IGBT

GD200HFQ120C2SD Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
