GD2400SGY120C3SN - IGBT

STARPOWER

📥 Download Datasheet

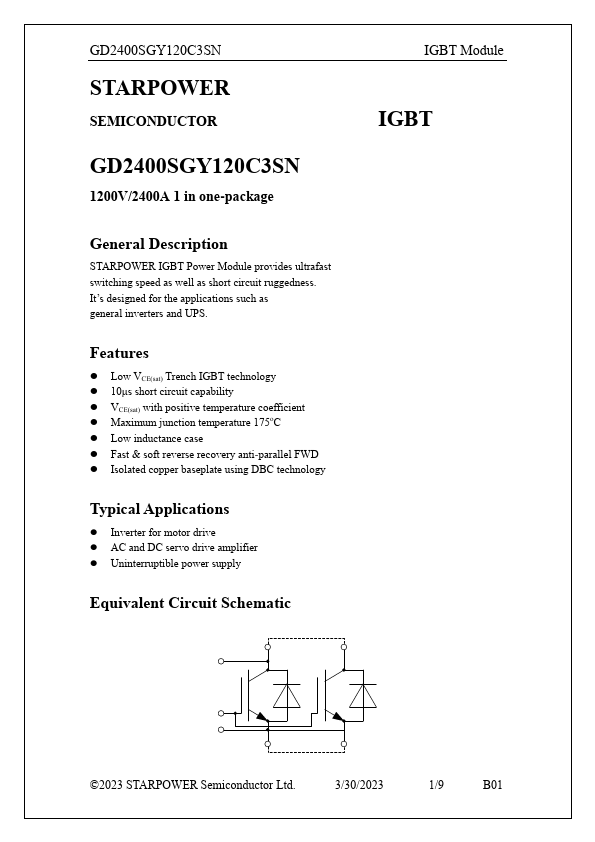

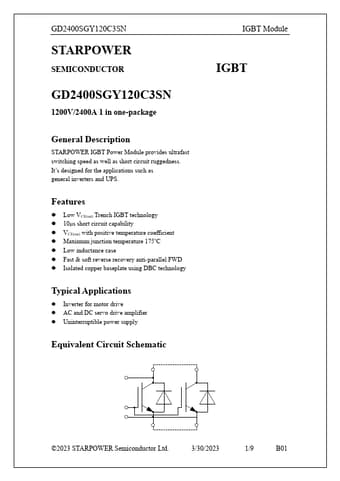

GD2400SGY120C3SN Datasheet Preview — Preview of GD2400SGY120C3SN PDF

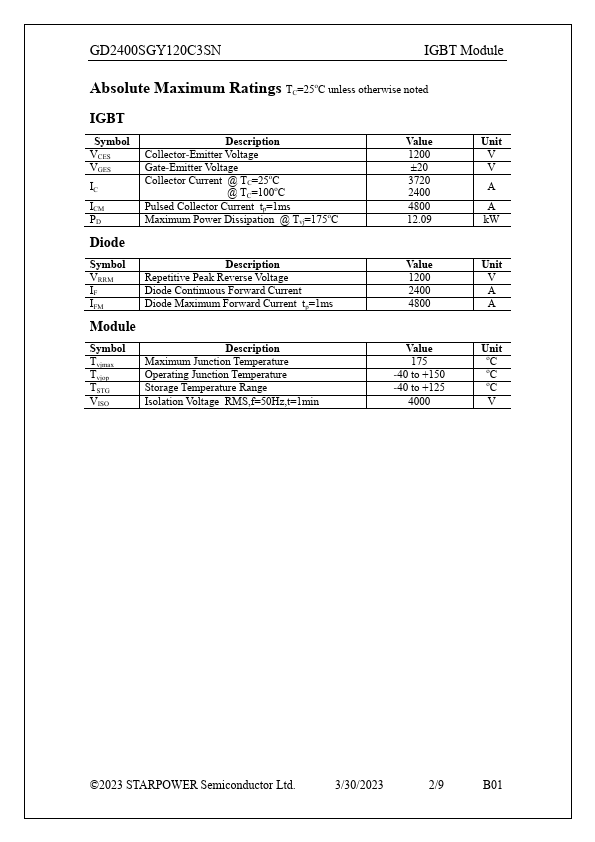

datasheet Preview Page 2

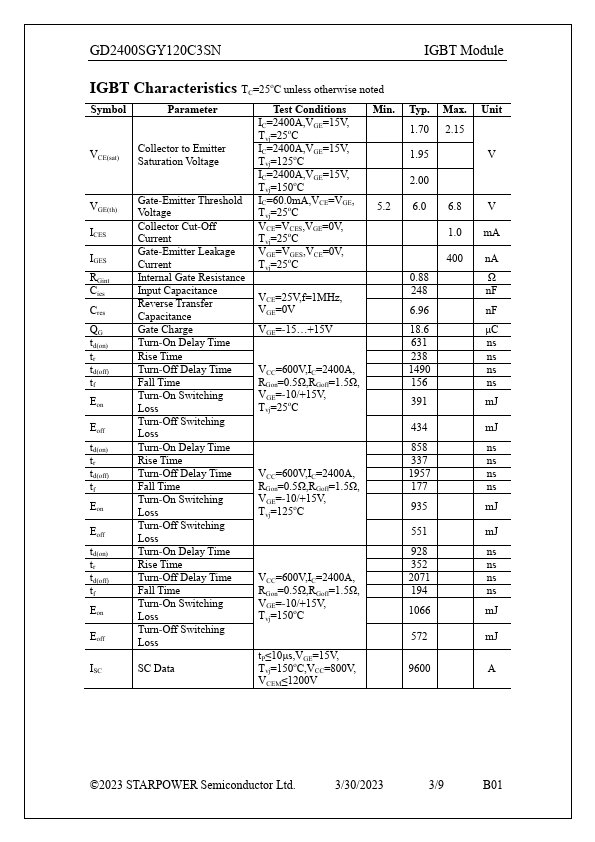

datasheet Preview Page 3

Datasheet Details

Part number	GD2400SGY120C3SN
Manufacturer	STARPOWER
File Size	346.98 KB
Description	IGBT
Datasheet	GD2400SGY120C3SN-STARPOWER.pdf

GD2400SGY120C3SN Product details

Description

STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
