GD35FSA120L2SMF - IGBT

STARPOWER

📥 Download Datasheet

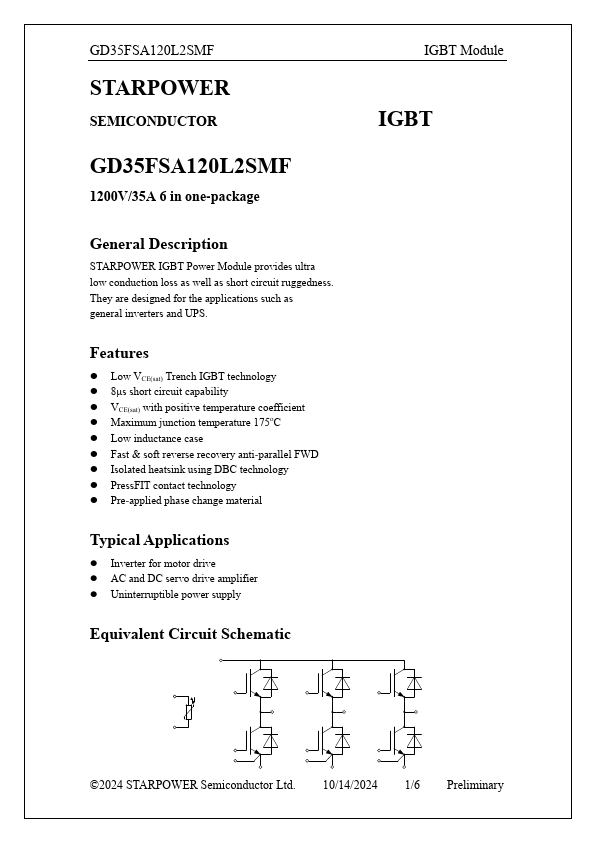

GD35FSA120L2SMF Datasheet Preview — Preview of GD35FSA120L2SMF PDF

datasheet Preview Page 2

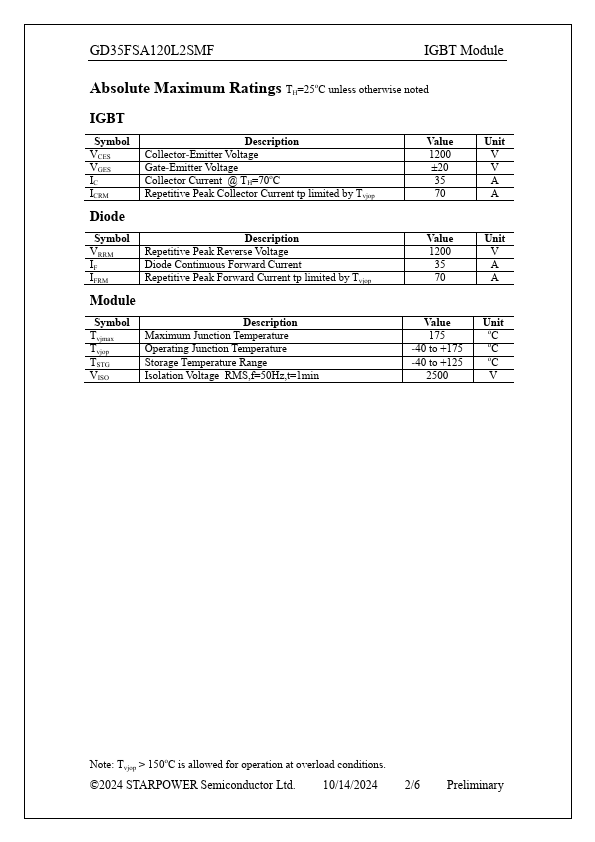

datasheet Preview Page 3

Datasheet Details

Part number	GD35FSA120L2SMF
Manufacturer	STARPOWER
File Size	474.47 KB
Description	IGBT
Datasheet	GD35FSA120L2SMF-STARPOWER.pdf

GD35FSA120L2SMF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
8μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology.
PressFIT contact technology.
Pre-applied phase change material Typical.
