GD35PHY120F5S - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated heatsink using DBC technology Typical.

📥 Download Datasheet

Datasheet preview – GD35PHY120F5S

Datasheet Details

Part number GD35PHY120F5S
Manufacturer STARPOWER
File Size 482.52 KB
Description IGBT
Datasheet download datasheet GD35PHY120F5S Datasheet

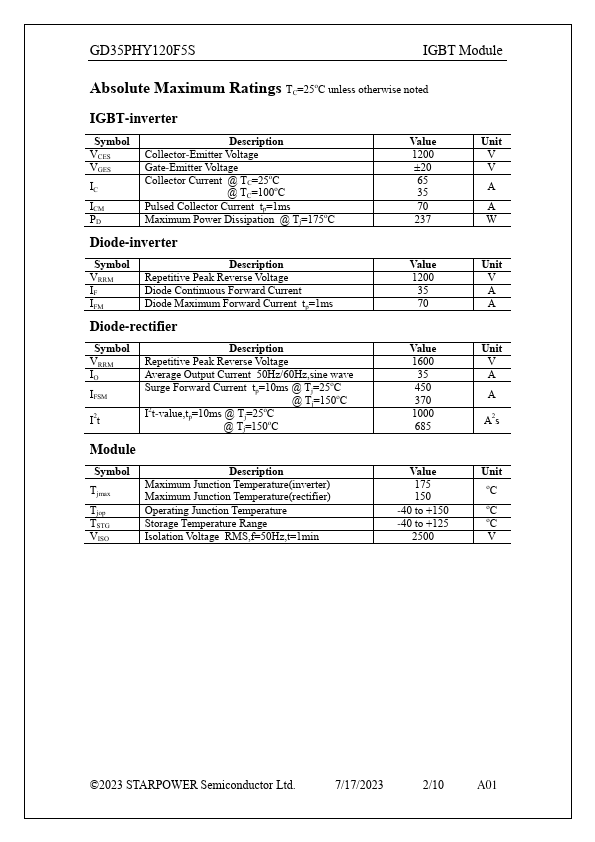

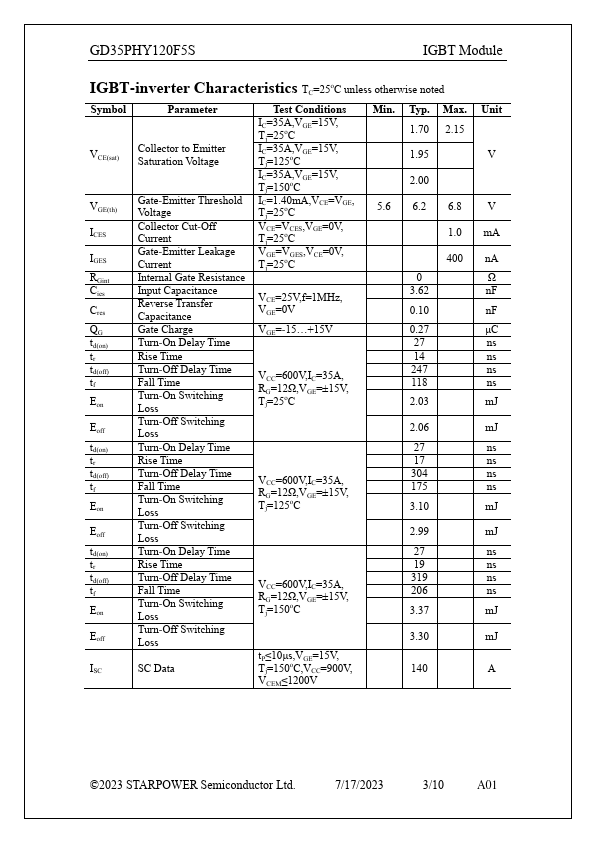

Additional preview pages of the GD35PHY120F5S datasheet.

📁 Similar Datasheet

Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text

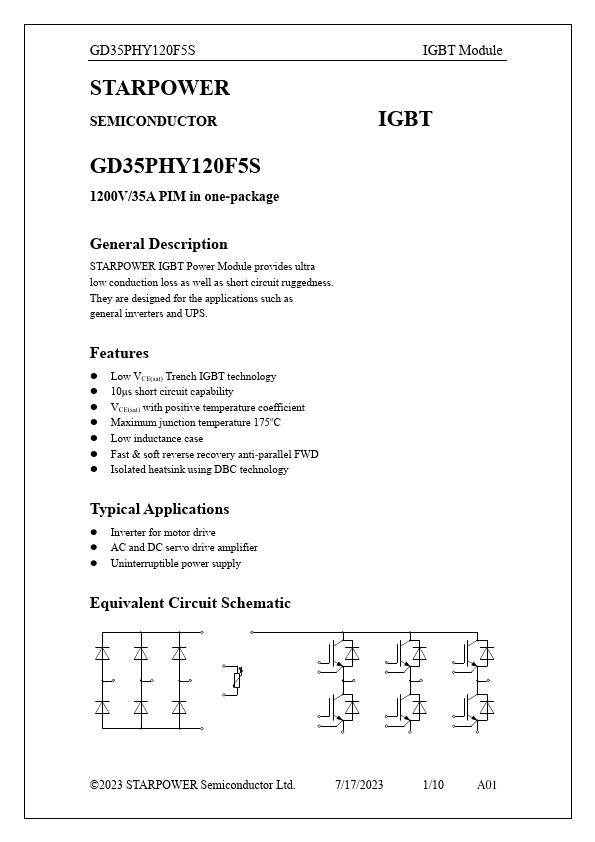

GD35PHY120F5S STARPOWER SEMICONDUCTOR GD35PHY120F5S 1200V/35A PIM in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated heatsink using DBC technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply Equivalent Circuit Schematic IGBT Module IGBT ©2023 STARPOWER Semiconductor Ltd.
