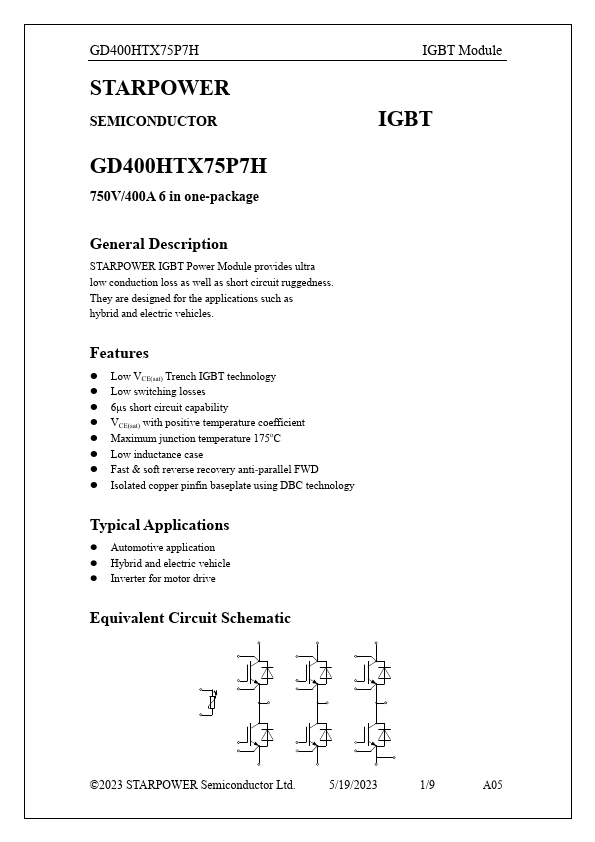

GD400HTX75P7H Datasheet - STARPOWER

GD400HTX75P7H IGBT

GD400HTX75P7H Features

* Low VCE(sat) Trench IGBT technology

* Low switching losses

* 6μs short circuit capability

* VCE(sat) with positive temperature coefficient

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated copper p

Datasheet Details

GD400HTX75P7H

STARPOWER

617.74 KB

Igbt.
