GD50HHU120C5SD - IGBT

STARPOWER

📥 Download Datasheet

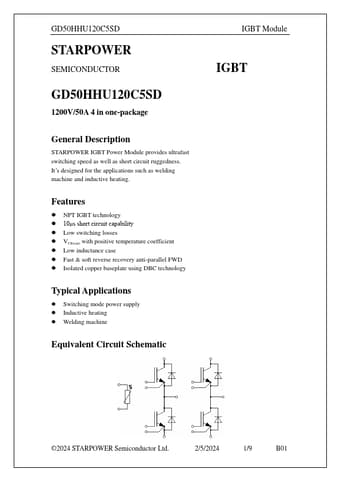

GD50HHU120C5SD Datasheet Preview — Preview of GD50HHU120C5SD PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GD50HHU120C5SD
Manufacturer	STARPOWER
File Size	422.69 KB
Description	IGBT
Datasheet	GD50HHU120C5SD-STARPOWER.pdf

GD50HHU120C5SD Product details

Description

STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

Features

NPT IGBT technology.
10μs short circuit capability.
Low switching losses.
VCE(sat) with positive temperature coefficient.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
