GD75HFU120C1SD - IGBT

STARPOWER

📥 Download Datasheet

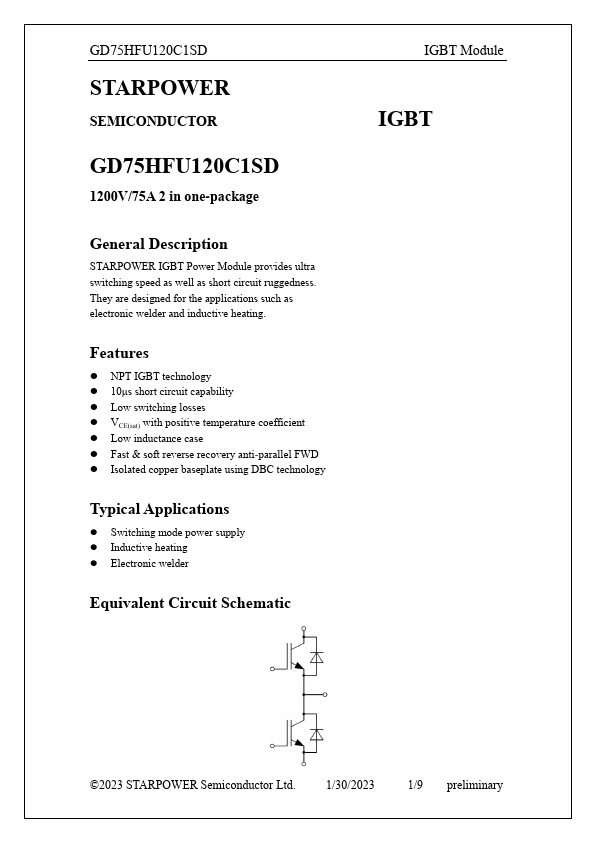

GD75HFU120C1SD Datasheet Preview — Preview of GD75HFU120C1SD PDF

datasheet Preview Page 2

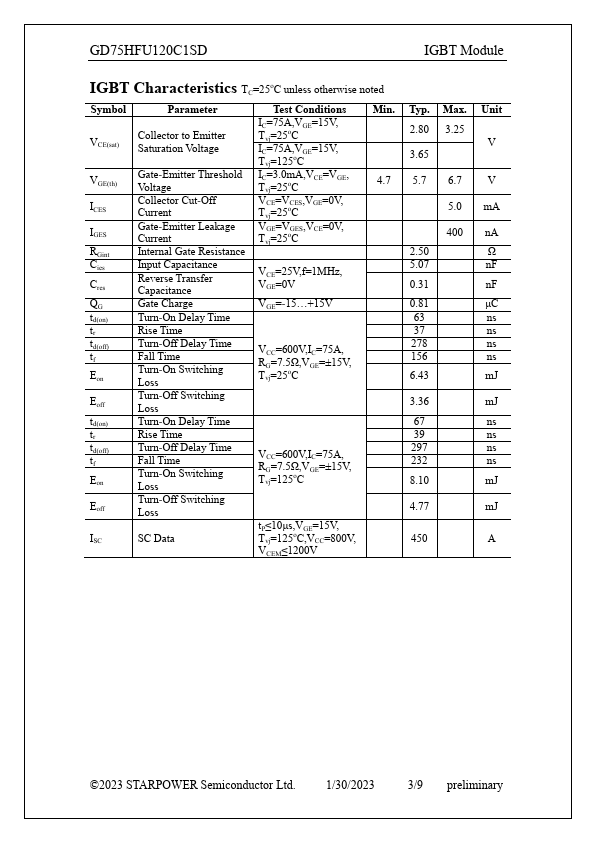

datasheet Preview Page 3

Datasheet Details

Part number	GD75HFU120C1SD
Manufacturer	STARPOWER
File Size	373.57 KB
Description	IGBT
Datasheet	GD75HFU120C1SD-STARPOWER.pdf

GD75HFU120C1SD Product details

Description

STARPOWER IGBT Power Module provides ultra switching speed as well as short circuit ruggedness.

Features

NPT IGBT technology.
10μs short circuit capability.
Low switching losses.
VCE(sat) with positive temperature coefficient.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
