ST16C2450

DUAL UNIVERSAL ASYNCHRONOUSRECEIVER/TRANSMITTER

ST16C2450 Features

* Functional compatible to NS16450, VL16C450, WD16C450

* Modem control signals (CTS

* , RTS

* , DSR

* , DTR

* , RI

* , CD

* )

* Programmable character lengths (5, 6, 7, 8)

* Even, odd, or no parity bit generation and detection

* Status report register

* Independen

ST16C2450 General Description

The ST16C2450 is a dual universal asynchronous receiver and transmitter. Independent programmable baud rate generators are provided to select transmit and receive clock rates from 50Hz to 1.5 MHz for each UART section. The ST16C2450 is an improved version of the NS16C450 UART with higher operating s.

ST16C2450 Datasheet (73.46 KB)

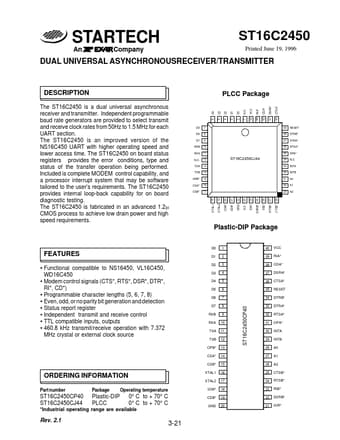

ST16C2450 Datasheet Preview — Preview of ST16C2450 PDF

Datasheet Details

Part number:

ST16C2450

Manufacturer:

STARTECH

File Size:

73.46 KB

Description:

Dual universal asynchronousreceiver/transmitter.
