KD035C-1 - LCD

KD035C-1 Datasheet Preview — Preview of KD035C-1 PDF

Datasheet Details

Part number	KD035C-1
Manufacturer	STARTEK
File Size	1.12 MB
Description	LCD
Datasheet	KD035C-1-STARTEK.pdf

KD035C-1 Product details

Description

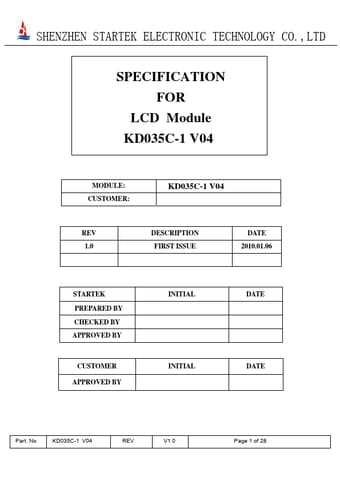

FIRST ISSUE DATE 2010.01.06 STARTEK PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No KD035C-1 V04 REV V1.0 Page 1 of 28 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Revision History Data Rev.No.Page 2010.01.06 V1.0 ALL Summary FIRST ISSUE Part.No KD035C-1 V04 REV V1.0 Page 2 of 28 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Contents General Description -------------------------------------------------------4 1.Block Diagram

Features

s -Low Input Voltage: 3.3V(TYP) -Display Colors of TFT LCD: 65K/262K colors -RGB Interface: 8BIT/9BIT/16BIT/18BIT MCU, 3SPI/4SPI+16BIT/18BIT RGB eral Information Items Display area(AA) Specification Main Panel 70.08(Ｈ).
52.56(Ｖ) (3.5inch) Driver element TFT active matrix Display colors 65K/262K Number of pixels 320(RGB).
240 Pixel arrangement RGB vertical stripe Pixel pitch 0.219(H).
0.219(V) Viewing angle 6:00 Controller IC SSD2119M Display mode Transmissive/ Normal.
