KD035FM-07 - LCD

KD035FM-07 Datasheet Preview — Preview of KD035FM-07 PDF

Datasheet Details

Part number	KD035FM-07
Manufacturer	STARTEK
File Size	1.17 MB
Description	LCD
Datasheet	KD035FM-07-STARTEK.pdf

KD035FM-07 Product details

Description

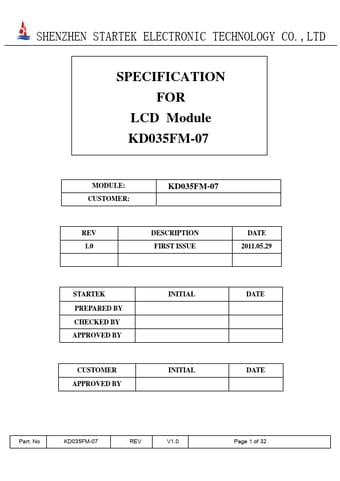

FIRST ISSUE DATE 2011.05.29 STARTEK PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No KD035FM-07 REV V1.0 Page 1 of 32 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Revision History Data Rev.No.Page 2011.05.29 V1.0 ALL Summary FIRST ISSUE Part.No KD035FM-07 REV V1.0 Page 2 of 32 SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO.,LTD Contents General Description ----------------------------------------------------------------------------

Features

-Low Input Voltage: 2.8V~3.3V(TYP) -Display Colors of TFT LCD: 65K/262K colors -Interface: 8-bits, 9-bits, 16-bits, 18-bits MCU interface. 6-bits, 16-bits, 18-bits RGB interface with graphic controller. 3-line/4-line serial interface. General Information Items Specification Main Panel Display area(AA) 48.96(H).
73.44(V) (3.5inch) Driver element TFT active matrix Display colors 65K/262k Number of pixels 320(RGB).
480 Pixel arrangement RGB vertical stripe Pixel pitch 0.153.
