CX11LHG

Ultra-Miniature AT Quartz Crystal

CX11LHG Features

* PACKAGE DIMENSIONS Mechanical shock survivability up to 75,000 g Ultra-low profile - typical height of 0.5 mm Low acceleration sensitivity available Hermetically sealed ceramic package Excellent aging characteristics Full military testing available Designed, manufactured and tested in the USA APPL

CX11LHG General Description

CX11LHG is a high performance quartz crystal designed to survive the most extreme shock and high vibration application environments. Low acceleration sensitivity and low aging performance meets the most demanding requirements. Available with tight calibration tolerances and high stability over temp.

CX11LHG Datasheet (248.12 KB)

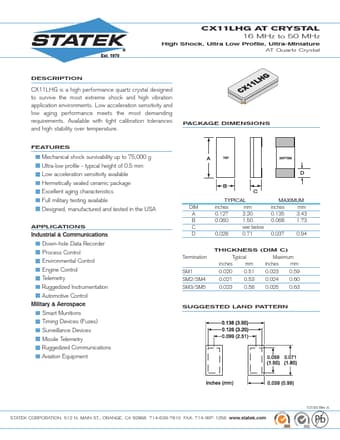

Preview of CX11LHG PDF

Datasheet Details

Part number:

CX11LHG

Manufacturer:

STATEK

File Size:

248.12 KB

Description:

Ultra-miniature at quartz crystal.
