CX16 Datasheet - STATEK

Ultra-Miniature Surface Mount Quartz Crystal

CX16 Features

* ceramic lid PACKAGE DIMENSIONS Ultra-miniature, surface mount design Ultra-low profile Hermetically sealed ceramic package High shock and vibration survival Excellent aging characteristics Full military testing available Designed and manufactured in the USA Lid APPLICATIONS Ceramic DIM A B C D T

CX16 General Description

When miniaturization is paramount, Statek’s low profile CX16 AT quartz crystal is an excellent choice. This crystal has a typical footprint of 2.0 mm x 1.2 mm, and a typical height of 0.43 mm. The resonator is manufactured using Statek’s photolithographic and chemical milling processes and then sea.

CX16 Datasheet (246.97 KB)

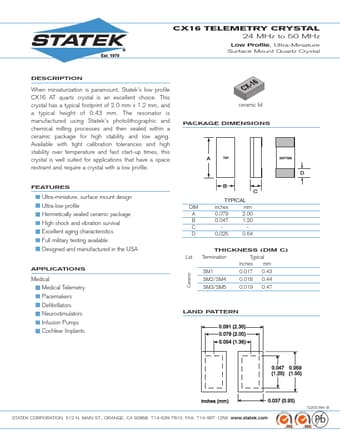

Preview of CX16 PDF

Datasheet Details

Part number:

CX16

Manufacturer:

STATEK

File Size:

246.97 KB

Description:

Ultra-miniature surface mount quartz crystal.
