QFP-EP Datasheet, Pack, STATS ChipPAC

QFP-EP Features

  • Pack
  • Body Sizes: 7 x 7mm to 24 x 24mm
  • Package Height: 1.0mm (TQFP-ep) and 1.4mm (LQFP-ep)
  • Lead Counts: 32L to 216L
  • Lead Pitch: 0.40mm to 0.80mm
  • <

PDF File Details

Part number:

QFP-EP

Manufacturer:

STATS ChipPAC

File Size:

238.22kb

Download:

📄 Datasheet

Description:

Exposed pad quad flat pack. STATS ChipPAC’s Exposed Pad Quad Flat Pack (QFP-ep) is a thermally enhanced version of the QFP package. Thermal enhancement is achiev

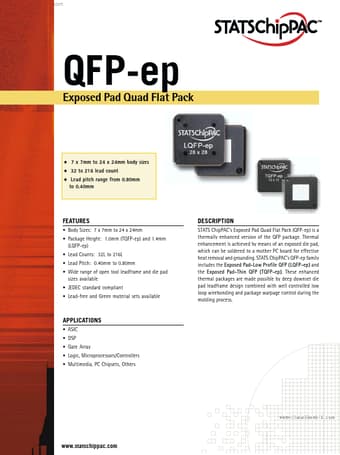

Datasheet Preview: QFP-EP 📥 Download PDF (238.22kb)
Page 2 of QFP-EP

QFP-EP Application

  • Applications
  • ASIC
  • DSP
  • Gate Array
  • Logic, Microprocessors/Controllers
  • Multimedia, PC Chipsets, Other
