210N4LF7

N-Channel Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STL210N4LF7AG MOSFET N-CH 40V 120A POWERFLAT DigiKey 3006 500 units
$1.29

210N4LF7 Datasheet (579.20 KB)

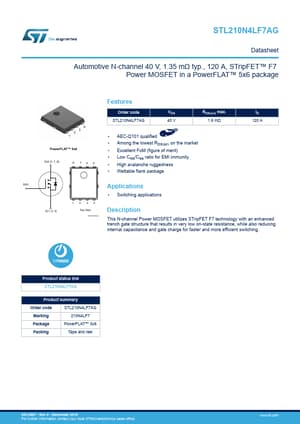

Preview of 210N4LF7 PDF

Datasheet Details

Part number:

210N4LF7

Manufacturer:

STMicroelectronics ↗

File Size:

579.20 KB

Description:

N-channel power mosfet.
STL210N4LF7AG Datasheet Automotive N-channel 40 V, 1.35 mΩ typ., 120 A, STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package 4 3 2 1 PowerFLAT™ 5x6.

210N4LF7 Features

* Order code STL210N4LF7AG VDS 40 V RDS(on) max. 1.6 mΩ

* AEC-Q101 qualified

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness

* Wettable flank package ID 12

210N4LF7 General Description

This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Product status link STL210N4LF7AG Product summary Orde.
