24N60DM2 - N-Channel Power MOSFET

STMicroelectronics

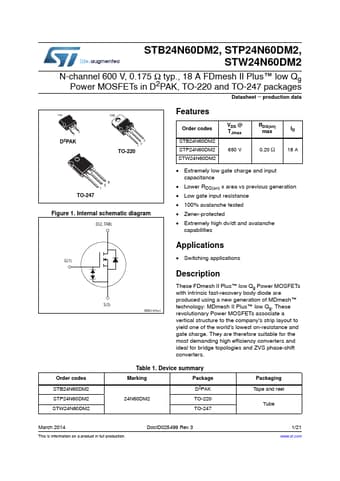

24N60DM2 Datasheet Preview — Preview of 24N60DM2 PDF

Datasheet Details

Part number	24N60DM2
Manufacturer	STMicroelectronics ↗
File Size	1.17 MB
Description	N-Channel Power MOSFET
Datasheet	24N60DM2-STMicroelectronics.pdf

24N60DM2 Product details

Description

These FDmesh II Plus™ low Qg Power MOSFETs with intrinsic fast-recovery body diode are produced using a new generation of MDmesh™ S(3) AM01476v1 technology: MDmesh II Plus™ low Qg.These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charge.They are therefore suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shift converters.Ord

Features

Order codes STB24N60DM2 STP24N60DM2 STW24N60DM2 VDS @ TJmax 650 V RDS(on) max ID 0.20 Ω 18 A.
Extremely low gate charge and input capacitance.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected.
Extremely high dv/dt and avalanche capabilities.
