26N60M2

N-Channel Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STW26N60M2 MOSFET N-CH 600V 20A TO247 DigiKey 335 2400 units
$1.42

26N60M2 Datasheet (800.56 KB)

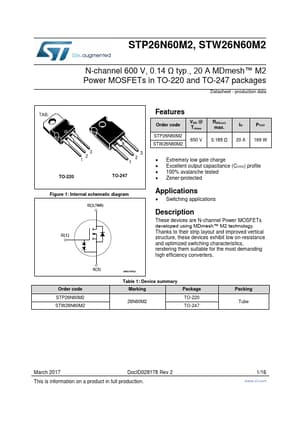

Preview of 26N60M2 PDF

Datasheet Details

Part number:

26N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

800.56 KB

Description:

N-channel power mosfet.
STP26N60M2, STW26N60M2 N-channel 600 V, 0.14 Ω typ., 20 A MDmesh™ M2 Power MOSFETs in TO-220 and TO-247 packages Datasheet - production data TAB 3 .

26N60M2 Features

* Order code STP26N60M2 STW26N60M2 VDS @ TJmax 650 V RDS(on) max. 0.165 Ω ID 20 A PTOT 169 W

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description These devices are

26N60M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. .
