26N50 Datasheet - UNISONIC TECHNOLOGIES

26A 500V N-CHANNEL POWER MOSFET

26N50 Features

* RDS(ON)=0.24Ω @ VGS=10V

* High Switching Speed

* 100% Avalanche Tested

* SYMBOL 2.Drain 1.Gate 3.Source

* ORDERING INFORMATION Package TO-3P 1 G Pin Assignment 2 3 D S Packing Tube Ordering Number Lead Free Halogen Free 26N50L-T3P-T 26N50G-T3P-T Note: Pin Assign

26N50 General Description

The U TC 26N50 is an N-ch annel mod e p ower MOSF ET using UTC’s advanced technology to provide customers with planar stripe and DMOS technol ogy. T his techn ology a llows a minim um on-state resistance and superior switching performance. It also can withstand high energy pulse in the avalanche an.

26N50 Datasheet (261.23 KB)

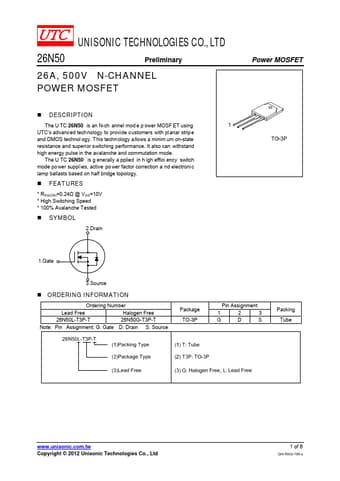

Preview of 26N50 PDF

Datasheet Details

Part number:

26N50

Manufacturer:

UNISONIC TECHNOLOGIES

File Size:

261.23 KB

Description:

26a 500v n-channel power mosfet.
