74AC174 - HEX D-TYPE FLIP FLOP WITH CLEAR

74AC174 Description

74AC174 HEX D-TYPE FLIP FLOP WITH CLEAR PRELIMINARY DATA s s s s s TTL.Information signals applied to D inputs are s transfered to the Q output .
www.

74AC174 Applications

* mantaining high speed operation similar to eqivalent Bipolar Schottky s HIGH SPEED: fMAX =125 MHz (TYP. ) at VCC = 5V LOW POWER DISSIPATION: ICC = 8 µA (MAX. ) at TA = 25 oC HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN. ) 50Ω TRANSMISSION LINE DRIVING CAPABILITY SYMMETRICAL OUTPUT IMPEDANCE: |IOH|

📥 Download Datasheet

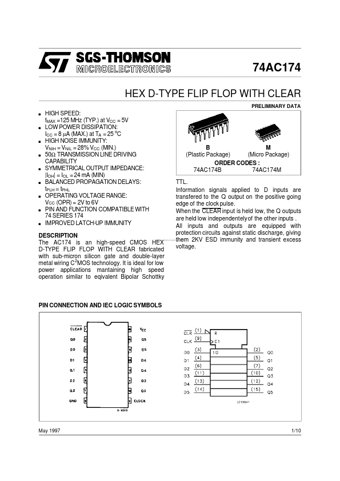

Preview of 74AC174 PDF
