74LVTH16244 LOW VOLTAGE BICMOS 16 BIT BUS BUFFER

The 74LVTH16244 is a low voltage BiCMOS 16 te cBIT BUS BUFFER (NON-INVERTED) fabricated le uwith sub-micron silicon gate and five-layer m.

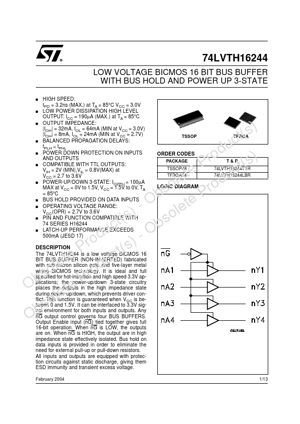

74LVTH16244 LOW VOLTAGE BICMOS 16 BIT BUS BUFFER WITH BUS HOLD AND POWER UP 3-STATE s HIGH SPEED: tPD = 3.2ns (MAX.) at TA = 85°C VCC = 3.0V s LOW POWER DISSIPATION HIGH LEVEL OUTPUT: ICC = 190µA (MAX.) at TA = 85°C s OUTPUT IMPEDANCE: )|IOH| = 32mA, IOL = 64mA (MIN at VCC = 3.0V) t(s|IOH| = 8mA, IOL = 24mA (MIN at VCC = 2.7V) s BALANCED PROPAGATION DELAYS: uctPLH ≅ tPHL ds POWER DOWN PROTECTION ON INPUTS ro )AND OUTPUTS P t(ss COMPATIBLE WITH TTL OUTPUTS: VIH = 2V (MIN),VIL = 0.8V(MAX) at .
