74VHC132

QUAD 2-INPUT SCHMITT NAND GATE

74VHC132 General Description

OThe 74VHC132 is an advanced high-speed -CMOS QUAD 2-INPUT SCHMITT NAND GATE )fabricated with sub-micron silicon gate and t(sdouble-layer metal wiring C2MOS technology. Power down protection is provided on all inputs cand 0 to 7V can be accepted on inputs with no duregard to the supply voltage. This.

74VHC132 Datasheet (157.46 KB)

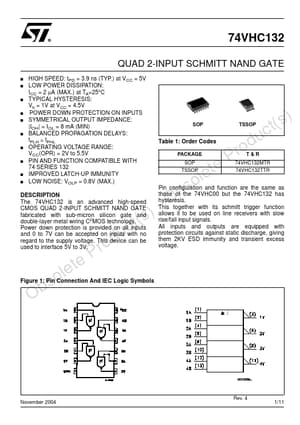

Preview of 74VHC132 PDF

Datasheet Details

Part number:

74VHC132

Manufacturer:

STMicroelectronics ↗

File Size:

157.46 KB

Description:

Quad 2-input schmitt nand gate.
74VHC132 QUAD 2-INPUT SCHMITT NAND GATE s HIGH SPEED: tPD = 3.9 ns (TYP.) at VCC = 5V s LOW POWER DISSIPATION: ICC = 2 µA (MAX.) at TA=25°C s TYP.
