78M12A, 78M05 Datasheet - STMicroelectronics

78M12A, 78M05, POSITIVE VOLTAGE REGULATORS

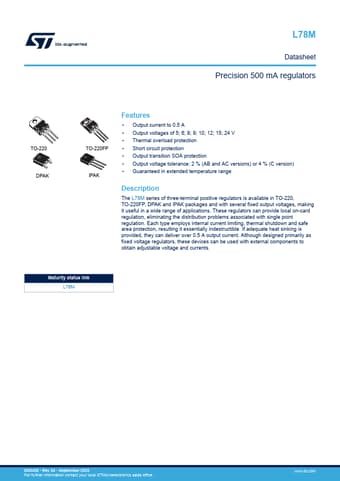

L78M TO-220 TO-220FP DPAK IPAK .
The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages,.

78M05-STMicroelectronics.pdf

78M12A Datasheet Preview — This datasheet PDF includes multiple part numbers: 78M12A, 78M05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

78M12A, 78M05

Manufacturer:

STMicroelectronics ↗

File Size:

1.05 MB

Description:

POSITIVE VOLTAGE REGULATORS

Note:

This datasheet PDF includes multiple part numbers: 78M12A, 78M05.
Please refer to the document for exact specifications by model.

Features

* Output current to 0.5 A
* Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V
* Thermal overload protection
* Short circuit protection
* Output transition SOA protection
* Output voltage tolerance: 2% (AB and AC versions) or 4% (C version)
* Guar

Applications

* These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided
