78M15, 78M05 - 3-TERMINALS 0.5A POSITIVE VOLTAGE REGULATOR

Unisonic Technologies

📥 Download Datasheet

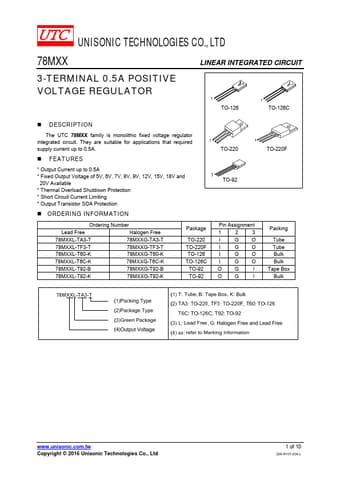

78M15 Datasheet Preview — This datasheet PDF includes multiple part numbers: 78M15, 78M05. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 78M15, 78M05
Manufacturer: Unisonic Technologies
File Size: 352.13 KB
Datasheet: 78M05-UnisonicTechnologies.pdf
Description: 3-TERMINALS 0.5A POSITIVE VOLTAGE REGULATOR
Note: This datasheet PDF includes multiple part numbers: 78M15, 78M05.
Please refer to the document for exact specifications by model.

78M15 Product details

Description

The UTC 78MXX family is monolithic fixed voltage regulator integrated circuit.

Features

S.
Output Current up to 0.5A.
Fixed Output Voltage of 5V, 6V, 7V, 8V, 9V, 12V, 15V, 18V and 20V Available.
Thermal Overload Shutdown Protection.
Short Circuit Current Limiting.
Output Transistor SOA Protection 1 TO-92.
