8812FP

ST8812FP

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics ST8812FP TRANS NPN 600V 7A TO-220FP DigiKey 0 1000 units
$0.95

8812FP Datasheet (164.48 KB)

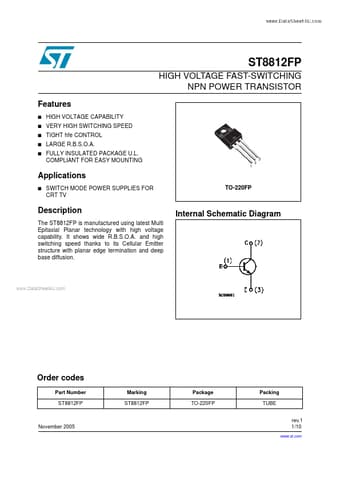

Preview of 8812FP PDF

Datasheet Details

8812FP Features

* HIGH VOLTAGE CAPABILITY VERY HIGH SWITCHING SPEED TIGHT hfe CONTROL LARGE R.B.S.O.A. FULLY INSULATED PACKAGE U.L. COMPLIANT FOR EASY MOUNTING Applications

* SWITCH MODE POWER SUPPLIES FOR CRT TV TO-220FP Description The ST8812FP is manufactured using latest Mul

8812FP General Description

The ST8812FP is manufactured using latest Multi Epitaxial Planar technology with high voltage capability. It shows wide R.B.S.O.A. and high switching speed thanks to its Cellular Emitter structure with planar edge termination and deep base diffusion. Internal Schematic Diagram www.DataSheet4U.com .
