ACS102-6T - Transient protected AC switch

Datasheet Summary

Description

The ACS102-6T belongs to the AC line switch family.

This high performance switch can control a load of up to 0.2A.

The ACS102-6T switch includes an overvoltage crowbar structure to absorb the overvoltage energy, and a gate level shifter driver to separate the digital controller from the main switch.

Features

Needs no external protection snubber or varistor.
Enables equipment to meet IEC 61000-4-5.
Reduces component count by up to 80%.
Interfaces directly with the microcontroller.
Common package tab connection supports connection of several alternating current switches (ACS) on the same cooling pad.
Integrated structure based on ASD technology.
Overvoltage protection by crowbar technology.
High noise immunity - static dV/dt > 300 V/µs.

Datasheet Details

Part number	ACS102-6T
Manufacturer	STMicroelectronics
File Size	146.17 KB
Description	Transient protected AC switch
Datasheet	ACS102-6T Datasheet
Additional preview pages of the ACS102-6T datasheet.

📁 Similar Datasheet

ACS102A - ACS102A Fiber Modem (Semtech Corporation)

ACS101A - Acapella Optical Modem (Semtech Corporation)

ACS103 - Acapella Optical Modem (Semtech Corporation)

ACS104A - Fiber Modem (Semtech Corporation)

ACS109MS - Radiation Hardened Dual J-K Flip-Flop (Intersil Corporation)

ACS10MS - Radiation Hardened Triple Three-Input NAND Gate (Intersil Corporation)

ACS112MS - Radiation Hardened Dual J-K Flip-Flop (Intersil Corporation)

ACS11MS - Radiation Hardened Triple 3-Input AND Gate (Intersil Corporation)

ACS125MS - Radiation Hardened Quad Buffer (Intersil Corporation)

ACS132MS - Radiation Hardened Quad 2-Input NAND Schmitt Trigger (Intersil Corporation)

Full PDF Text Transcription

Click to expand full text

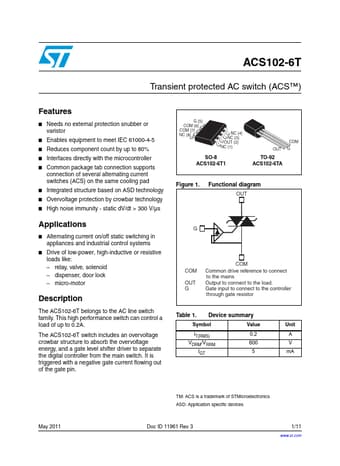

ACS102-6T Transient protected AC switch (ACS™) Features ■ Needs no external protection snubber or varistor ■ Enables equipment to meet IEC 61000-4-5 ■ Reduces component count by up to 80% ■ Interfaces directly with the microcontroller ■ Common package tab connection supports connection of several alternating current switches (ACS) on the same cooling pad ■ Integrated structure based on ASD technology ■ Overvoltage protection by crowbar technology ■ High noise immunity - static dV/dt > 300 V/µs Applications ■ Alternating current on/off static switching in appliances and industrial control systems ■ Drive of low-power, high-inductive or resistive loads like: – relay, valve, solenoid – dispenser, door lock – micro-motor Description The ACS102-6T belongs to the AC line switch family.
