ACS103 - Acapella Optical Modem

Datasheet Summary

Description

The ACS103 is a complete synchronous opticalmodem controller/driver IC, supporting various user-programmable, full-duplex data-rates to 25

Features

  • Enables three full-duplex serial transmission channels through a single fiber optic cable, providing a virtual six fiber path.
  • Link lengths up to 5 km.
  • Uses a single Ping Pong LED (PPLED) to both transmit and receive data.
  • Supports 7 synchronous data rates up to 64 kbps or asynchronous data rates from DC to 19.2/ 9.6 kbps.
  • Supports three additional low frequency asynchronous channels or RS-232 handshake signals: RTS, CTS, DTR and DSR.
  • BER 10-9.
  • Digital.

📥 Download Datasheet

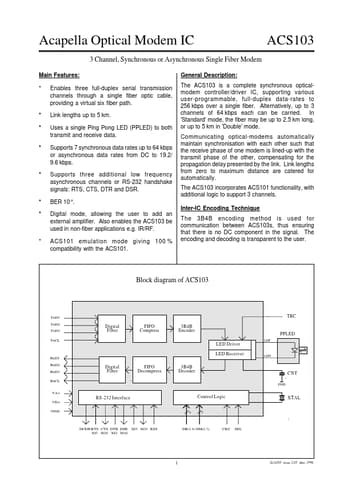

Datasheet preview – ACS103

Datasheet Details

Part number ACS103
Manufacturer Semtech Corporation
File Size 50.70 KB
Description Acapella Optical Modem
Datasheet download datasheet ACS103 Datasheet
Additional preview pages of the ACS103 datasheet.

📁 Similar Datasheet

  • ACS102-5T1 - AC LINE SWITCH (STMicroelectronics)
  • ACS102-5TA - AC LINE SWITCH (STMicroelectronics)
  • ACS102-6T - Transient protected AC switch (STMicroelectronics)
  • ACS108 - Overvoltage protected AC switch (STMicroelectronics)
  • ACS108-5SA - AC LINE SWITCH (STMicroelectronics)
  • ACS108-5SN - AC LINE SWITCH (STMicroelectronics)
  • ACS108-6S - Overvoltage protected AC switch (STMicroelectronics)
  • ACS108-6SA - overvoltage protected AC switch (STMicroelectronics)
  • ACS108-6SN - overvoltage protected AC switch (STMicroelectronics)
  • ACS108-8SA - overvoltage protected AC switch (STMicroelectronics)
Other Datasheets by Semtech Corporation

Full PDF Text Transcription

Click to expand full text
ACS103 - 3 Channel, Synchronous or Asynchronous Single Fiber Modem Acapella Optical Modem IC ACS103 3 Channel, Synchronous or Asynchronous Single Fiber Modem Main Features: * Enables three full-duplex serial transmission channels through a single fiber optic cable, providing a virtual six fiber path. * Link lengths up to 5 km. * Uses a single Ping Pong LED (PPLED) to both transmit and receive data. * Supports 7 synchronous data rates up to 64 kbps or asynchronous data rates from DC to 19.2/ 9.6 kbps. * Supports three additional low frequency asynchronous channels or RS-232 handshake signals: RTS, CTS, DTR and DSR. * BER 10-9. * Digital mode, allowing the user to add an external amplifier. Also enables the ACS103 be used in non-fiber applications e.g. IR/RF.
