ACS401 Acapella Optical Modem

📥 Download Datasheet  Datasheet Preview Page 1

Description

Acapella Optical Modem IC ACS401 Main .
The ACS401 is a complete optical-modem controller/ driver/receiver IC, supporting various user programmable, fullduplex, synchronous data rates to 12.

📥 Download Datasheet

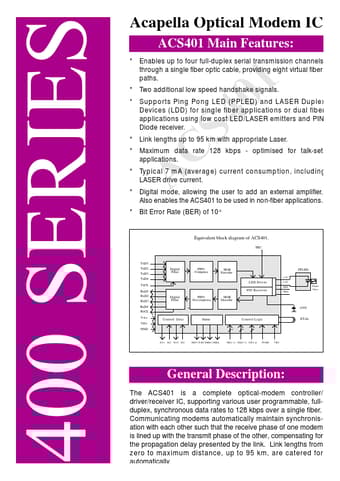

Preview of ACS401 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ACS401
Manufacturer
Semtech Corporation
File Size
88.07 KB
Datasheet
ACS401_SemtechCorporation.pdf
Description
Acapella Optical Modem

Features

* Enables up to four full-duplex serial transmission channels through a single fiber optic cable, providing eight virtual fiber paths.
* Two additional low speed handshake signals.

Applications

* or dual fiber applications using low cost LED/LASER emitters and PIN Diode receiver.
* Link lengths up to 95 km with appropriate Laser.
* Maximum data rate 128 kbps - optimised for talk-set applications.
* Typical 7 mA (average) current consumption, including LASER drive current.
* D
