ACS00MS - Radiation Hardened Quad 2-Input NAND Gate

Datasheet Summary

Description

The Intersil ACS00MS is a Radiation Hardened quad 2-Input NAND gate.

A high logic level on both inputs forces the output to a logic low state.

The ACS00MS utilizes advanced CMOS/SOS technology to achieve high-speed operation.

Features

  • 1.25 Micron Radiation Hardened SOS CMOS.
  • Total Dose 300K RAD (Si).
  • Single Event Upset (SEU) Immunity 80 MEV-cm2/mg.
  • Dose Rate Upset >1011 RAD (Si)/s, 20ns Pulse.
  • Latch-Up Free Under Any Conditions.
  • Military Temperature Range: -55oC to +125oC.
  • Significant Power Reduction Compared to ALSTTL Logic.
  • DC Operating Voltage Range: 4.5V to 5.5V.
  • Input Logic Levels.

📥 Download Datasheet

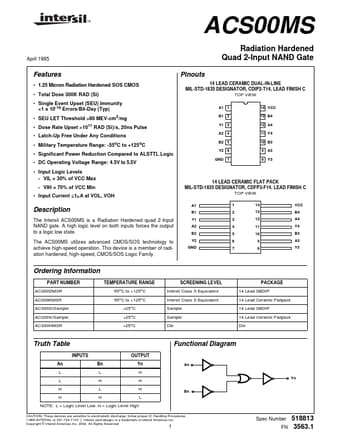

Datasheet preview – ACS00MS
