ACS108-8SA

overvoltage protected AC switch

ACS108-8SA Features

* Enables equipment to meet IEC 61000-4-5 surge with overvoltage crowbar technology

* High noise immunity against static dV/dt and IEC 61000-4-4 burst

* Needs no external protection snubber or varistor

* Reduces component count by up to 80% and Interfaces directly wit

ACS108-8SA General Description

The ACS108-8SA belongs to the AC switch range (built with A. S. D.® technology). This high performance switch can control a load of up to 0.8 A. This device switch includes an overvoltage crowbar structure to absorb the inductive turn-off energy, and a gate level shifter driver to separate the dig.

ACS108-8SA Datasheet (285.94 KB)

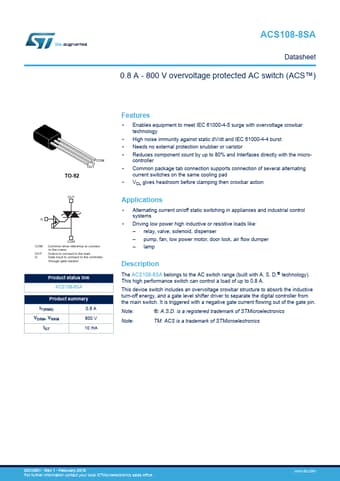

Preview of ACS108-8SA PDF

Datasheet Details

Part number:

ACS108-8SA

Manufacturer:

STMicroelectronics ↗

File Size:

285.94 KB

Description:

Overvoltage protected ac switch.
ACS108-8SA Datasheet 0.8 A - 800 V overvoltage protected AC switch (ACS™) TO-92 G COM OUT OUT G COM OUT G COM Common drive reference to connect .
