B14NK50Z N-Channel MOSFET

B14NK50Z Description

STP14NK50Z - STP14NK50ZFP STB14NK50Z-STB14NK50Z-1-STW14NK50Z N-channel 500V - 0.34Ω - 14A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-protected SuperMESHTM Pow.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

B14NK50Z Features

* Type STP14NK50Z STP14NK50ZFP STB14NK50Z STB14NK50Z-1 STW14NK50Z VDSS 500V 500V 500V 500V 500V RDS(on) ID

B14NK50Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
* Switching application 3 2 1 TO-220 TO-247 123 I2PAK 3 2 1 TO-220FP 3 1 D2PAK Internal schematic diagram Order codes Part number STP14NK50Z STP14NK50ZFP STB14NK50ZT4 STB14NK

📥 Download Datasheet

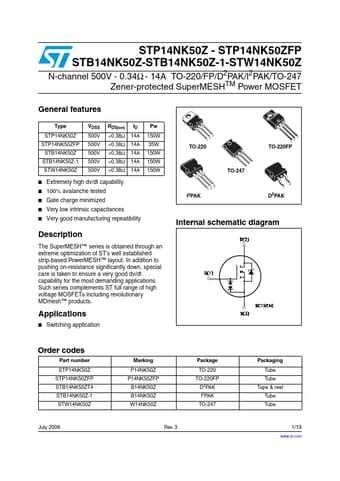

Preview of B14NK50Z PDF
