B14NK60Z

STB14NK60Z

STMicroelectronics

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	STMicroelectronics	STB14NK60ZT4	MOSFET N-CH 600V 13.5A D2PAK	DigiKey	250	500 units	$2.53	🛒 Buy Now

B14NK60Z Datasheet (430.43 KB)

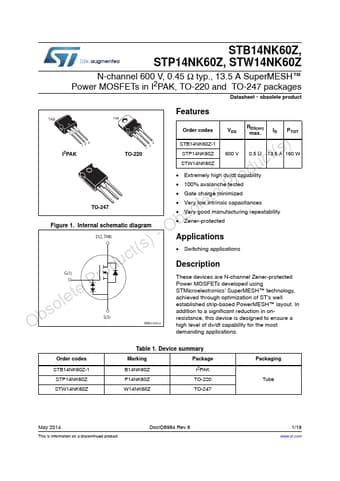

B14NK60Z Datasheet Preview — Preview of B14NK60Z PDF

Datasheet Details

Part number:

B14NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

430.43 KB

Description:

Stb14nk60z.
STB14NK60Z, STP14NK60Z, STW14NK60Z N-channel 600 V, 0.45 Ω typ., 13.5 A SuperMESH™ 2 Power MOSFETs in I PAK, TO-220 and TO-247 packages Datasheet - ob.

B14NK60Z Features

* TAB TAB Order codes VDS RDS(on) max. ID PTOT 123 t(s)I2PAK 3 2 1 TO-220 lete ProducTO-247 bsoFigure 1. Internal schematic diagram - OD(2, TAB) duct(s)G(1) solete ProS(3) Ob AM01476v1 STB14NK60Z-1 STP14NK60Z 600 V 0.5 Ω 13.5 A 160 W STW14NK60Z

* Extremely high dv/dt capability

B14NK60Z General Description

These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well established strip-based PowerMESH™ layout. In addition to a significant reduction in onresistance, this device is designed to ensure a high.
