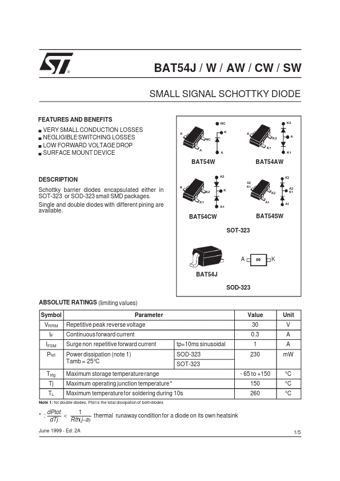

BAT54SW Datasheet, Diode, STMicroelectronics

BAT54SW Features

• Diode VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES LOW FORWARD VOLTAGE DROP SURFACE MOUNT DEVICE K NC A NC K A K2 K1 A K2 A K1 BAT54W DESCRIPTION Schottky barrier diodes enca

PDF File Details

Part number:

BAT54SW

Manufacturer:

STMicroelectronics ↗

File Size:

52.54kb

Download:

📄 Datasheet

Description:

Small signal schottky diode. Schottky barrier diodes encapsulated either in SOT-323 or SOD-323 small SMD packages. Single and double diodes with different pining

TAGS

BAT54SW

STMicroelectronics
